Home >> Audi >> 2021 >> A7 Quattro Premium Plus >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> Wiring Diagram [DLZA] >> Wiring Diagram >> Engine Coolant Temperature Sensor, Oil Level Thermal Sensor, Engine Temperature Control Sensor, Engine/Motor Control Module >> Notes

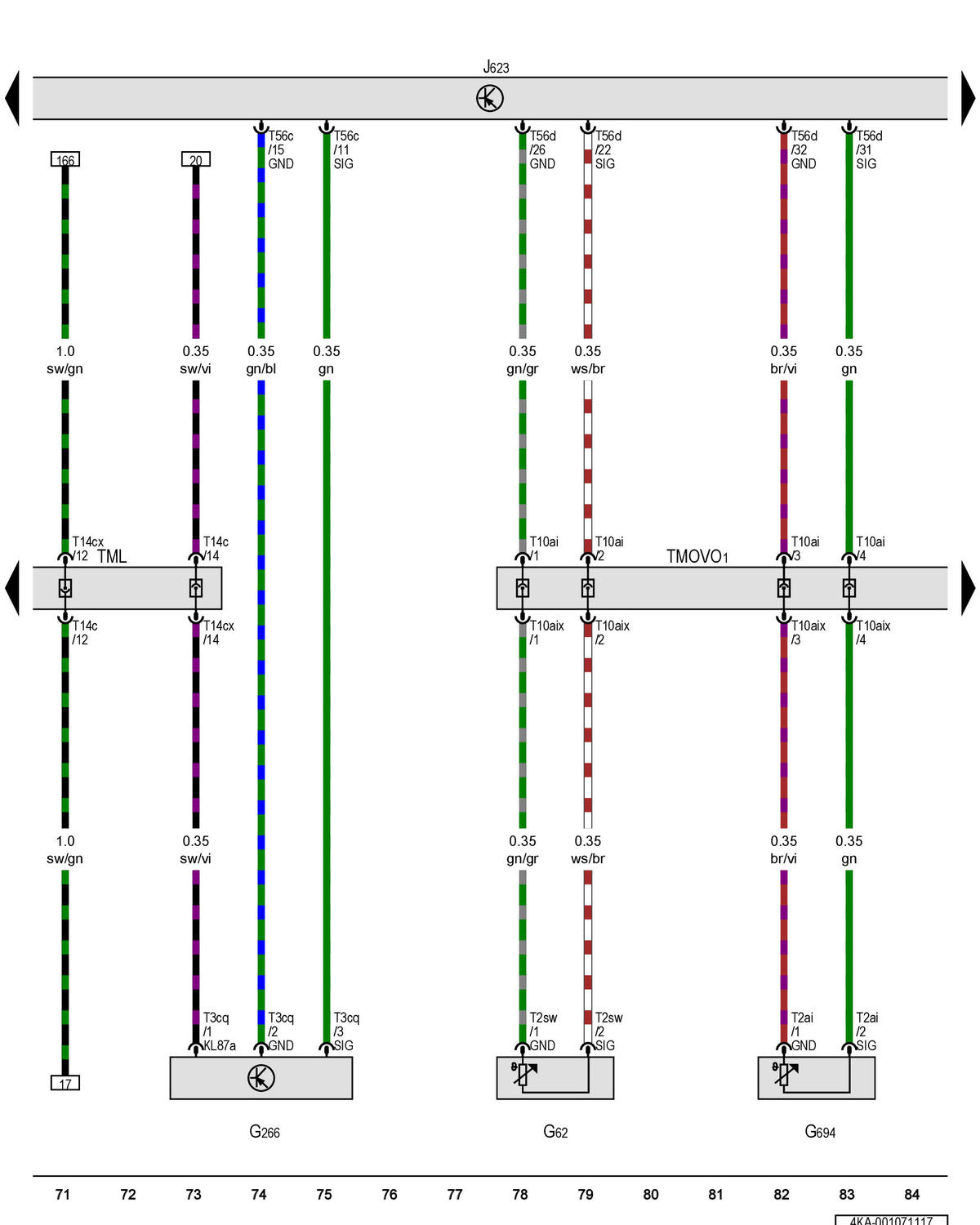

Engine Coolant Temperature Sensor, Oil Level Thermal Sensor, Engine Temperature Control Sensor, Engine/Motor Control Module: Notes

GWW4KA-001071117Courtesy of AUDI OF AMERICA, LLC
