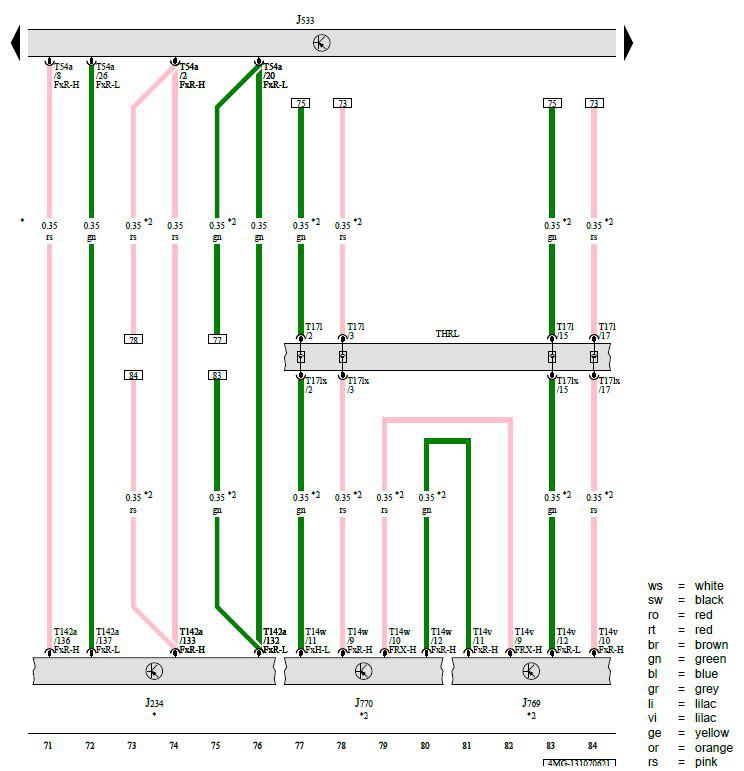

Airbag Control Module, Data Bus on Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2

Courtesy of AUDI OF AMERICA, LLC

J234 -  Airbag Control Module

J533 -  Data Bus on Board Diagnostic Interface

J769 -  Lane Change Assistance Control Module

J770 -  Lane Change Assistance Control Module 2

T14v -  14-Pin Connector, Black

T14w -  14-Pin Connector, Black

T17l -  17-Pin Connector, Black

T17lx -  17-Pin Connector, Black

T54a -  54-Pin Connector, Black

T142a -  142-Pin Connector, Yellow

THRL -  Coupling Point in Luggage Compartment, Left

* -  Refer to Applicable Airbag Wiring Diagram

*2 -  For Vehicles with Lane Change Assistance
