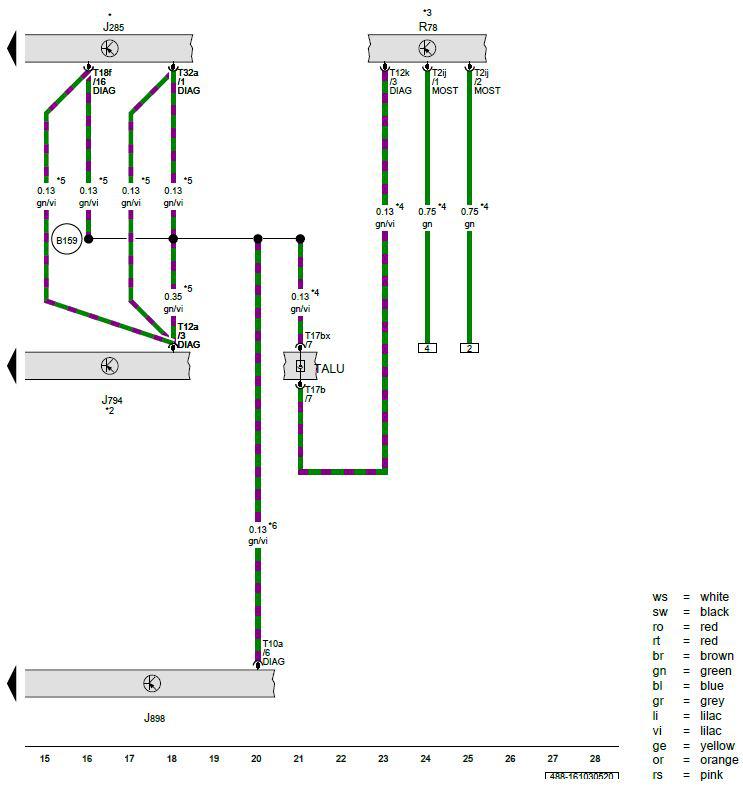

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module, TV Tuner
J285 - Instrument Cluster Control Module
J794 - Information Electronics Control Module 1
J898 - Windshield Projection Head Up Display Control Module
R78 - TV Tuner
T2ij - 2-Pin Connector, Black
T10a - 10-Pin Connector, Black
T12a - 12-Pin Connector, Gray
T12k - 12-Pin Connector, Black
T17b - 17-Pin Connector, Blue
T17bx - 17-Pin Connector, Blue
T18f - 18-Pin Connector, Black
T32a - 32-Pin Connector, Gray
TALU - Coupling Point on Left A-Pillar, Bottom
B159 - Diagnostic Connection (in Interior Wiring Harness)
* - Refer to Applicable Wiring Diagram for Instrument Cluster
*2 - Refer to Applicable MMI (Information Electronics) Wiring Diagram
*3 - Refer to the Applicable TV Tuner Wiring Diagram
*4 - For Vehicles with TV Tuner
*5 - Depending on Equipment
*6 - For Vehicles with Windshield Projection
