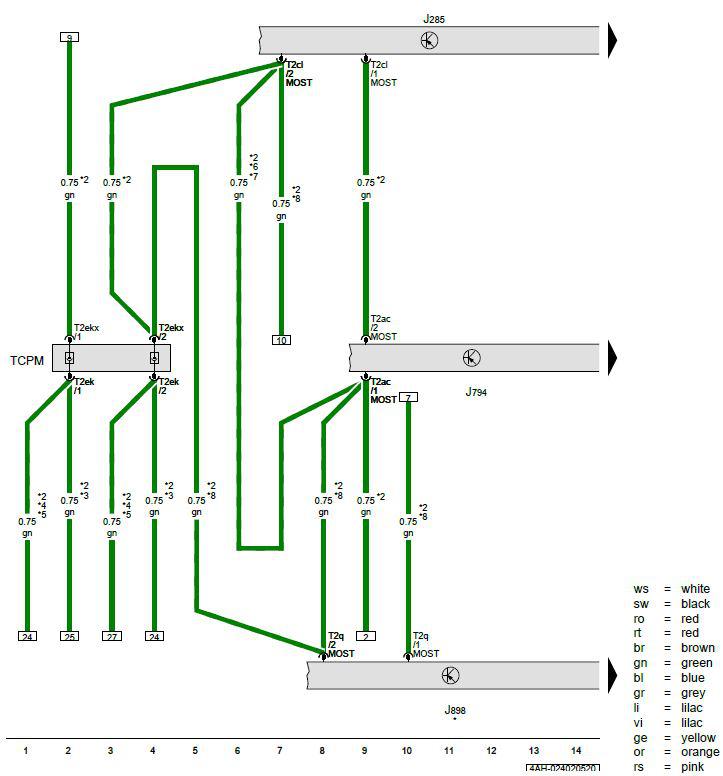

Instrument Cluster Control Module, Information Electronics Control Module 1, Windshield Projection Head Up Display Control Module

Courtesy of AUDI OF AMERICA, LLC

J285 -  Instrument Cluster Control Module

J794 -  Information Electronics Control Module 1

J898 -  Windshield Projection Head Up Display Control Module

T2ac -  2-Pin Connector, Black

T2cl -  2-Pin Connector, Black

T2ek -  2-Pin Connector, Black

T2ekx -  2-Pin Connector, Black

T2q -  2-Pin Connector, Black

TCPM -  Coupling Point on Instrument Panel, Center

* -  Refer to Applicable Windshield Projection Wiring Diagram

*2 -  Fiber Optic Cable

*3 -  For Vehicles with TV Tuner

*4 -  For Vehicles with Bang & Olufsen Sound System

*5 -  For Vehicles with Bose Sound System

*6 -  For Vehicles with Standard Sound System

*7 -  For Vehicles with MMI

*8 -  For Vehicles with Windshield Projection
