Selector Mechanism, Removing And Installing: Removing

-- Remove the selector lever handle. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

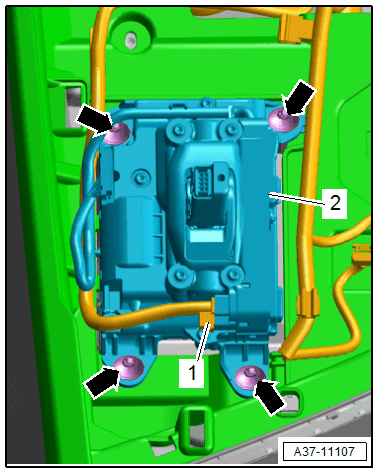

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the selector mechanism -2-.
