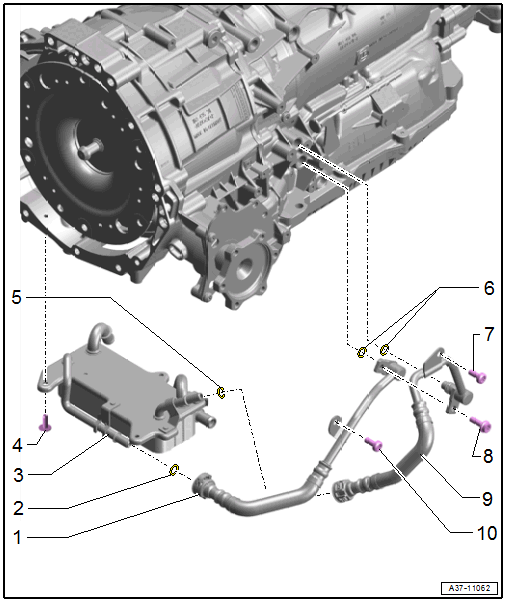

Overview - ATF Circuit, Version 2

Courtesy of AUDI OF AMERICA, LLC

1. ATF Hose Line
   • Cleaning. Refer to Cleaning .
   • Install all the way by hand with a new O-ring
2. O-Ring
   • If there are leaks replace the ATF hose line
   • Coat with ATF before installing
3. ATF Cooler
   • Removing and Installing. Refer to ATF COOLER, REMOVING AND INSTALLING .
4. Bolt
   • 8 Nm
5. O-Ring
   • If there are leaks replace the ATF hose line
   • Coat with ATF before installing
6. O-Rings
   • Replace
   • Coat with ATF before installing
7. Not installed
8. Bolt
   • 20 Nm
   • First insert the ATF lines with new O-rings by hand as far as the stop
   • The retaining tab on the lower ATF line must lie on the transmission threads
   • The retaining tab on the upper ATF line must touch the lower one.
9. ATF Hose Line
   • Cleaning. Refer to Cleaning .
   • Install all the way by hand with a new O-ring
10. Bolt
    • 8 Nm

Disconnect the ATF Line

Fig 1: Disconnect the ATF Line

Courtesy of AUDI OF AMERICA, LLC

-- Release the clip -1- from the connector coupling -2- in direction of -B arrows- and lift in direction of -A arrows-.

-- Remove the connector coupling.
