ATF Lines, Removing And Installing: Notes
Special tools and workshop equipment required
- Used Oil Collection and Extraction Unit :SMN372500
- Engine Bung Set :VAS6122
- Hose diameter approximately 18 mm
- Compressed air gun, commercially available
- Protective Eyewear
Requirements
- General repair instructions. Refer to GENERAL REPAIR INFORMATION .
- Guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
- Seal the open lines and connections with clean plugs from the :VAS6122 .
- Replace the O-rings after removal.
- Check the ATF level after removing and Installing ATF lines. Refer to ATF LEVEL, CHECKING .
Removing and Installing
-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
- Rear noise insulation, A4/A5
- Center noise insulation, Q5

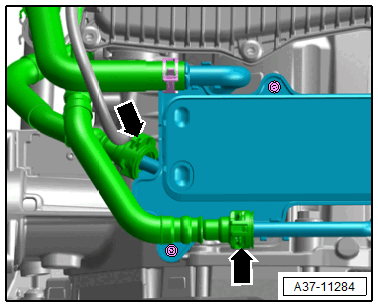

-- Disconnect the ATF lines -arrows-. Refer to Figure.

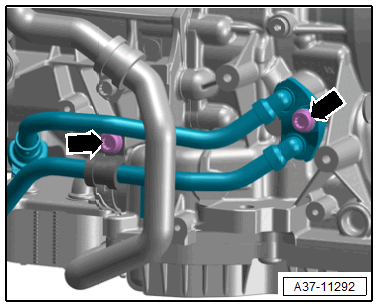

-- Remove the bolts -arrows- and remove the ATF lines from the transmission. (different versions)
