OEM Wiring Diagram [DAYB,DJYA]
>>

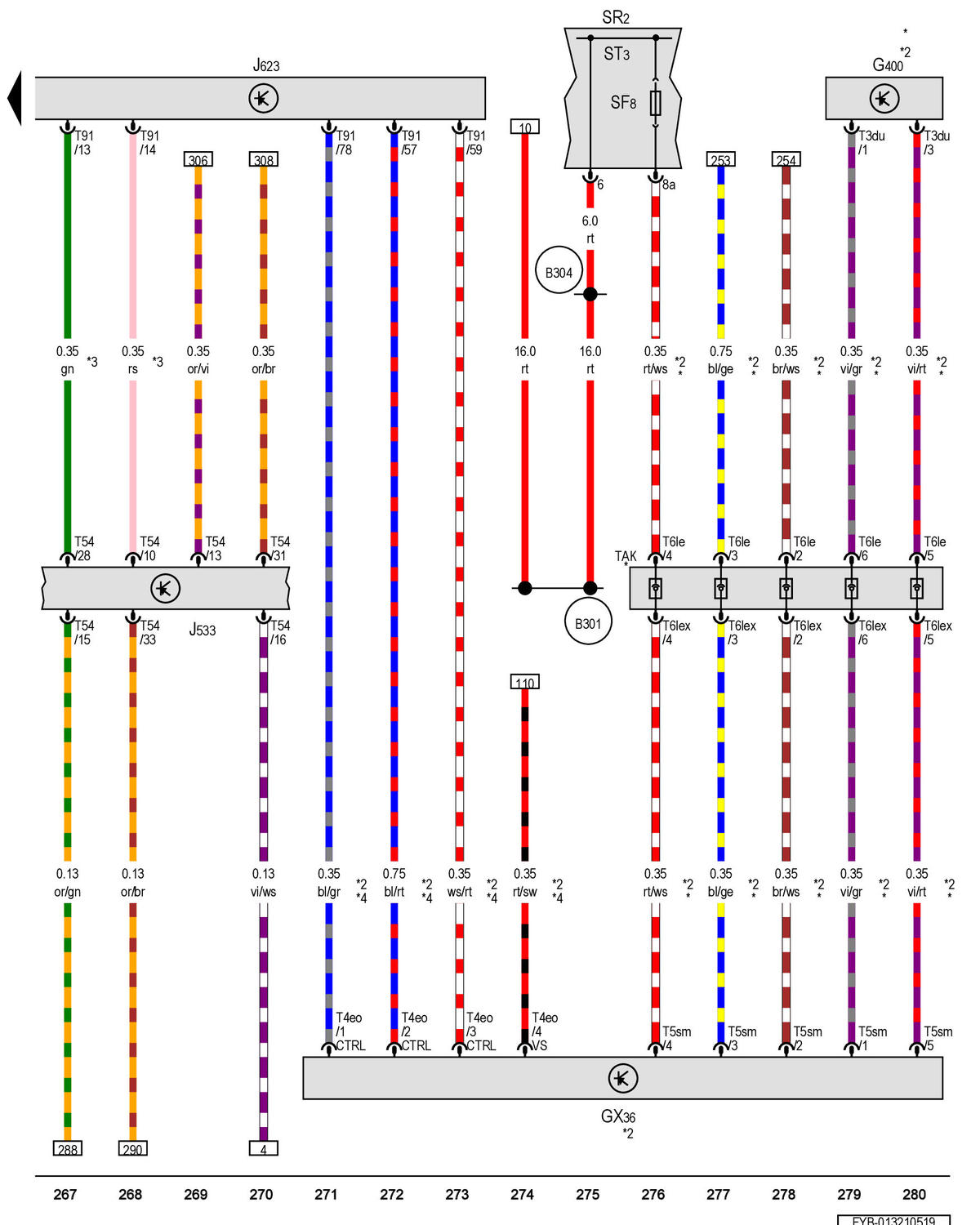

Wiring Diagram
>>
Fuel Tank Leak Detection Module, Fuel Tank Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Relay And Fuse Panel 2
>>
Notes
Fuel Tank Leak Detection Module, Fuel Tank Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Relay And Fuse Panel 2: Notes
Courtesy of AUDI OF AMERICA, LLC
