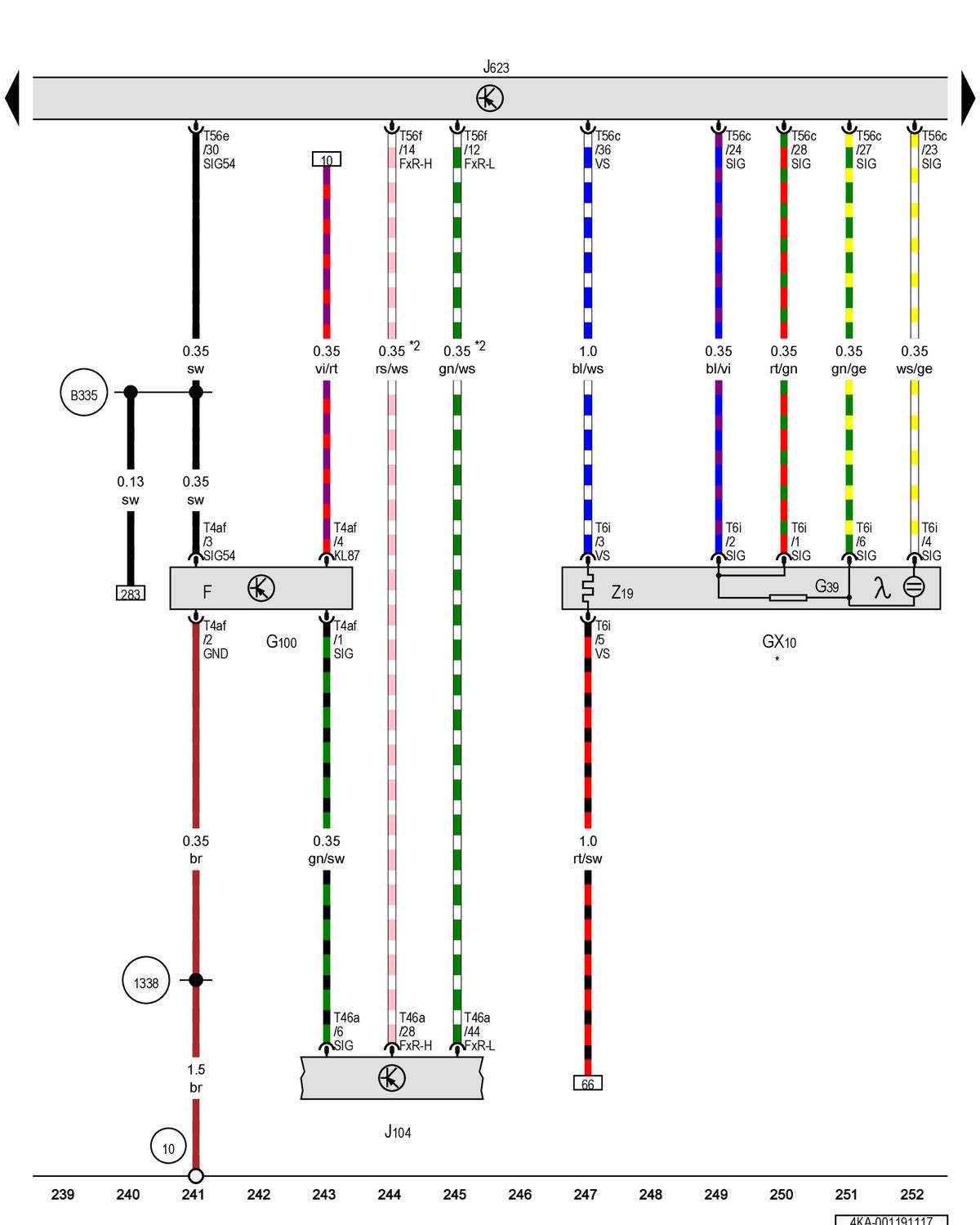

Oxygen Sensor 1 Before Catalytic Converter, Brake Pedal Position Sensor, Abs Control Module, Engine/Motor Control Module: Notes

GWW4KA-001191117Courtesy of AUDI OF AMERICA, LLC
