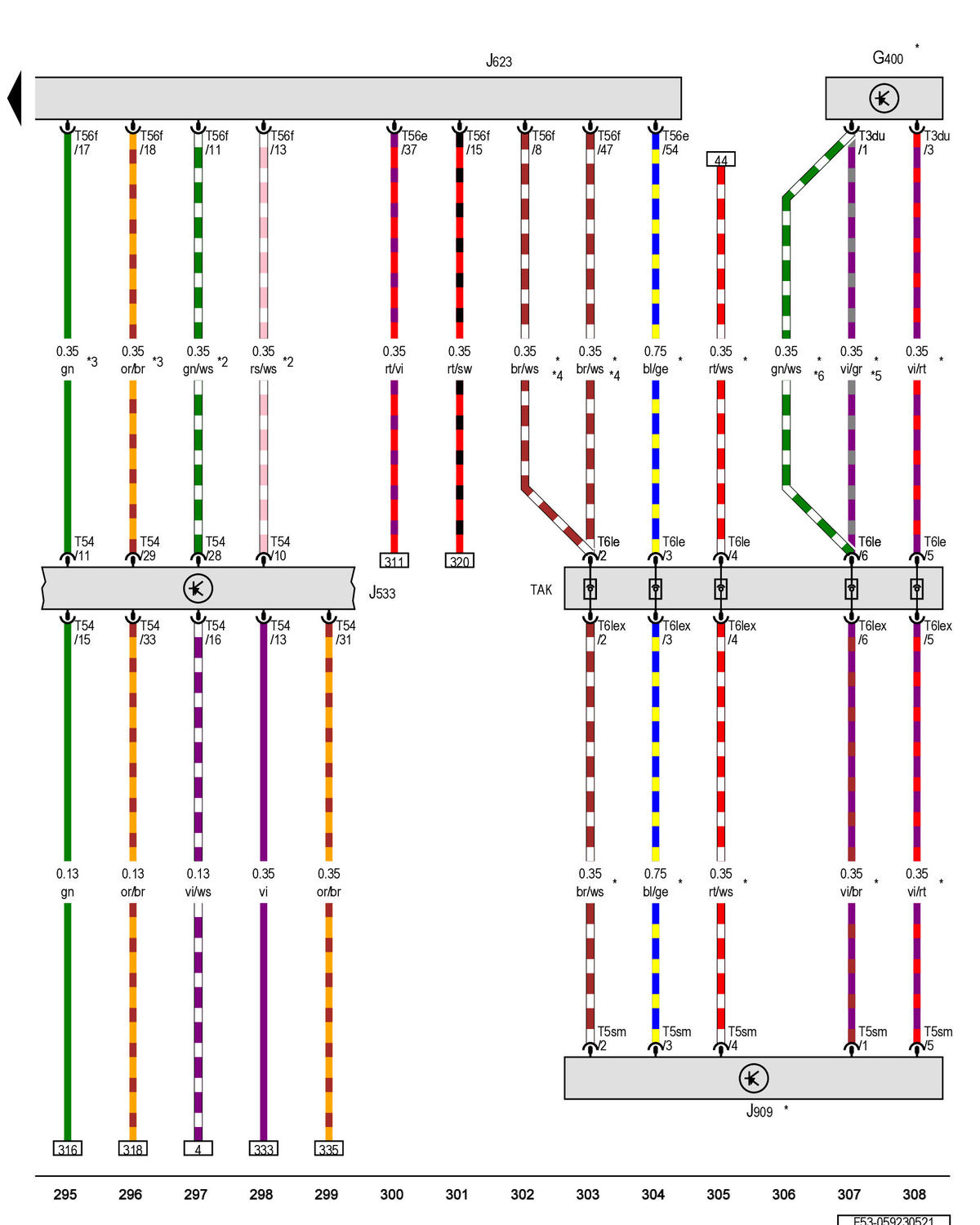

Fuel Tank Pressure Sensor, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module

Courtesy of AUDI OF AMERICA, LLC

G400

Fuel Tank Pressure Sensor

J533

Data Bus on Board Diagnostic Interface Type:BT, Slpdok:, Aim:BTJ533

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front Type:BT, Slpdok:, Aim:BTJ623

J909

Fuel Tank Leak Detection Control Module Type:BT, Slpdok:, Aim:BTJ909

T3du

3-Pin Connector, Black

T5sm

5-Pin Connector, Black

T6le

6-Pin Connector, Green

T6lex

6-Pin Connector, Green

T54

54-Pin Connector, Black

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TAK

Fuel Tank Coupling Point Type:BT, Slpdok:, Aim:BTTAK

*

For USA Only

*2

Data Bus Wire (Flexray Bus)

*3

Data Bus Wire (CAN Bus)

*4

Depending on Equipment

*5

Omitted as a Running Change

*6

Running Change
