Overview - Bevel Box Components, 0FN

Characteristics of the bevel box. Refer to BEVEL BOX IDENTIFICATION .

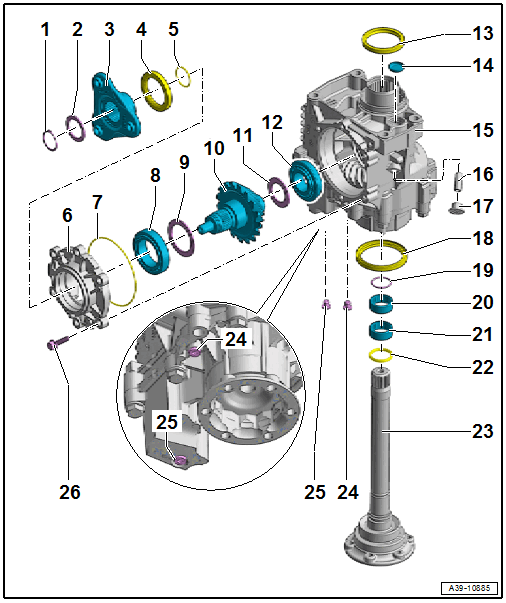

Fig 1: Exploded View Of

Courtesy of AUDI OF AMERICA, LLC

1. Circlip
   • Always replace
2. Washer
   • Always replace
3. Output Flange
   • Removing and Installing. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING, 0FN .
4. Seal
   • Always replace. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING, 0FN .
5. O-Ring
   • Always replace. Refer to OUTPUT FLANGE, REMOVING AND INSTALLING, 0FN .
6. Housing Cover
7. O-Ring
   • Always replace
8. Bearings
   • No replacement part
9. Shim
   • No replacement part
10. Pinion
    • No replacement part
11. Shim
    • No replacement part
12. Bearings
    • No replacement part
13. Seal
    • Always replace. Refer to LEFT SEAL, REPLACING .
14. Cap
15. Bevel Box
    • Removing. Refer to BEVEL BOX, REMOVING .
    • Installing. Refer to BEVEL BOX, INSTALLING .
16. Bleeder
17. Ventilation Cap
18. Seal
    • Always replace. Refer to RIGHT SEAL, REPLACING .
19. Circlip
20. Needle Bearing
    • Always replace. Refer to RIGHT FLANGE SHAFT NEEDLE BEARING, REPLACING .
21. Needle Bearing
    • Always replace. Refer to RIGHT FLANGE SHAFT NEEDLE BEARING, REPLACING .
22. O-Ring
23. Flange Shaft
    • Removing and Installing. Refer to RIGHT FLANGE SHAFT, REMOVING AND INSTALLING, VEHICLES WITH AWD .
24. Oil Filler Plug
    • 20 Nm
25. Oil Drain Plug
    • 20 Nm
26. Bolt
    • 38 Nm
    • Tighten in a diagonal sequence
