Overview - EVAP System, Vehicles Without Leak Detection System

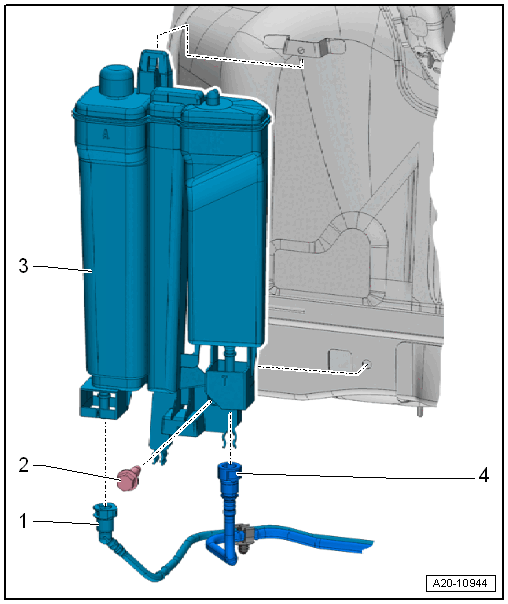

Fig 1: Exploded View Of EVAP System, Without Fuel Tank Leak Detection

Courtesy of AUDI OF AMERICA, LLC

1. Breather Line
   • To EVAP Canister Purge Regulator Valve 1 -N80-
   • Clipped to the fuel tank
   • Connector Coupling, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
2. Screw
   • 20 Nm
3. EVAP Canister
   • Installed location: under the wheel housing liner in right rear wheel housing
   • Removing and installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, VEHICLES WITHOUT LEAK DETECTION SYSTEM .
   • Different versions. For the correct allocation. Refer to the Parts Information.
4. Breather Line
   • To the fuel tank
   • Connector Coupling, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
