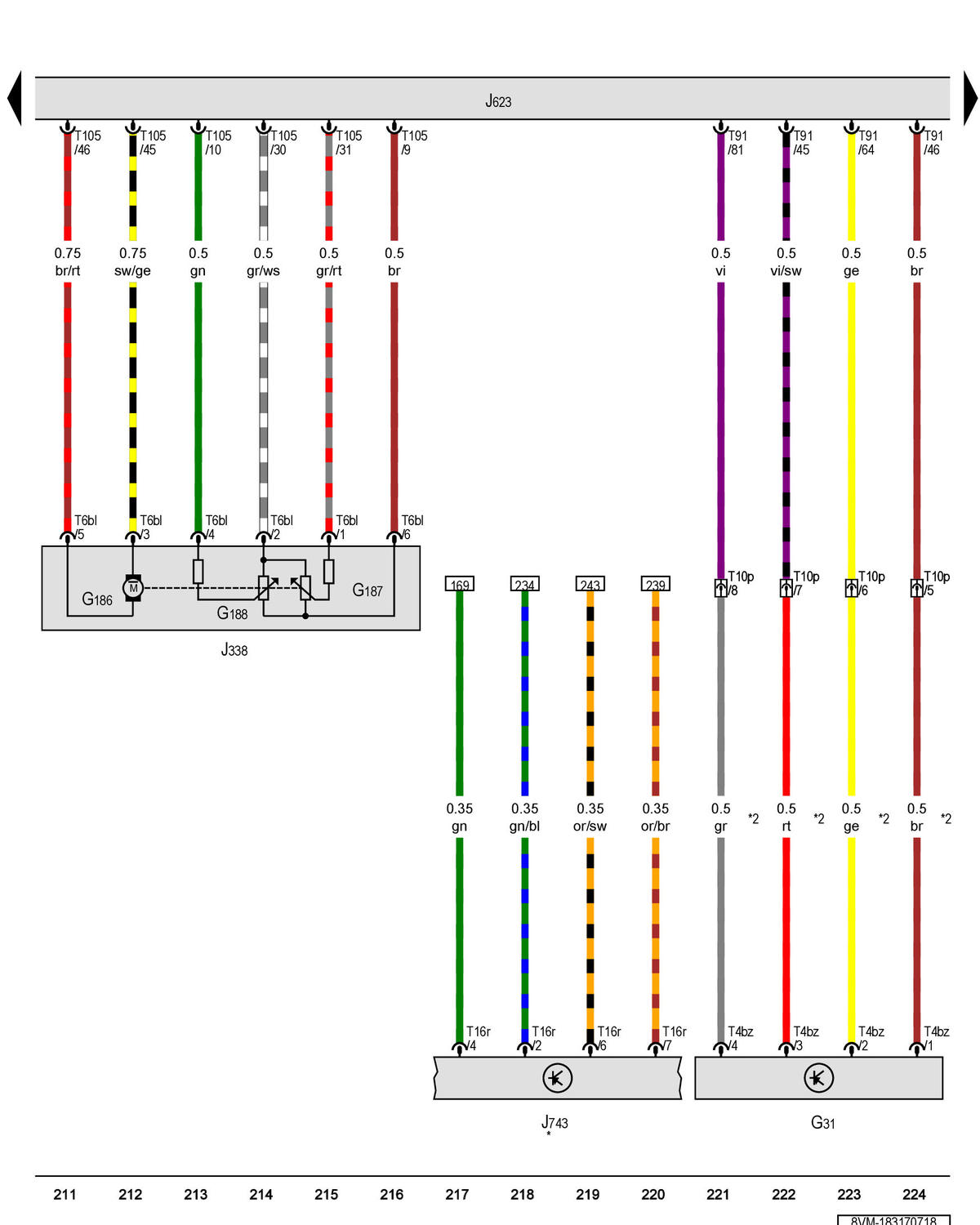

Charge Air Pressure Sensor, Throttle Valve Control Module, Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC: Notes

GWW8VM-183170718

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
