Left/Right Rear Bass Speaker -R15- / -R17-, Removing And Installing, Convertible: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the side trim panel insert. Refer to OVERVIEW - SIDE TRIM PANEL .

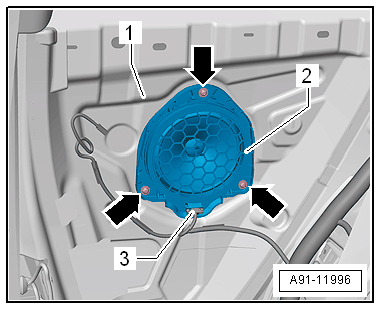

-- Release and disconnect the connector -3- from the Left Rear Bass Speaker -R15- -2-.
-- Remove the screws -arrows- and then remove the Left Rear Bass Speaker -R15- -2- from the body -1-.
