Front Midrange Speaker, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

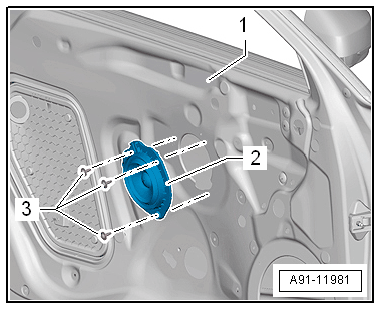

-- Release and disconnect the connector from the Left Front Midrange Speaker -R103- -2-.
-- Remove the screws -3- from the Left Front Midrange Speaker -R103- -2-.
-- Remove the Left Front Midrange Speaker -R103- -2- from the door -1-.
