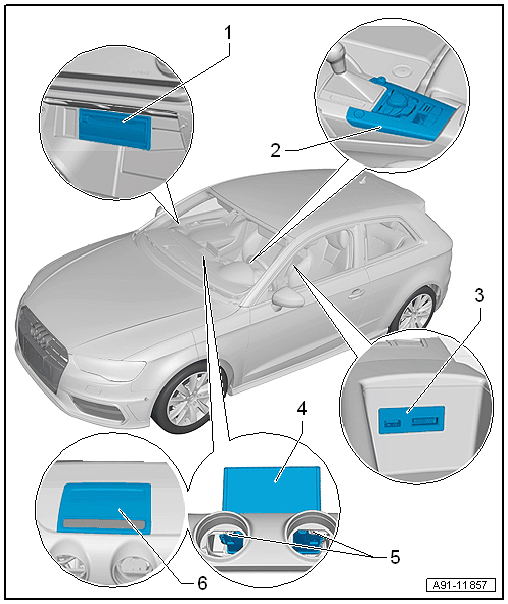

Component Location Overview - Infotainment System

7UG - MMI Navigation Plus

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • Connector Assignment. Refer to Information Electronics Control Module 1 -J794-, THROUGH MY 2016 .
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. Multimedia System Control Head -E380-
   • Connector Assignment. Refer to Multimedia System Control Head -E380- IN THE CENTER CONSOLE .
   • Removing and installing. Refer to Multimedia System Control Head -E380- IN CENTER CONSOLE, REMOVING AND INSTALLING .
3. External Multimedia Device Connection
   • Refer to EXTERNAL MULTIMEDIA DEVICE CONNECTION
4. Front Information Display Control Head -J685-
   • Connector Assignment. Refer to Front Information Display Control Head -J685- .
   • Removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
5. Bolt
   • 3 Nm
   • Captive
   • Quantity: 2
6. Cover
   • Replace after removing. Refer to Parts Information.

No Illustration

• Display screws - display kinematics: 1 Nm
• Always replace.
• Only use original screws. Refer to Parts Information.
