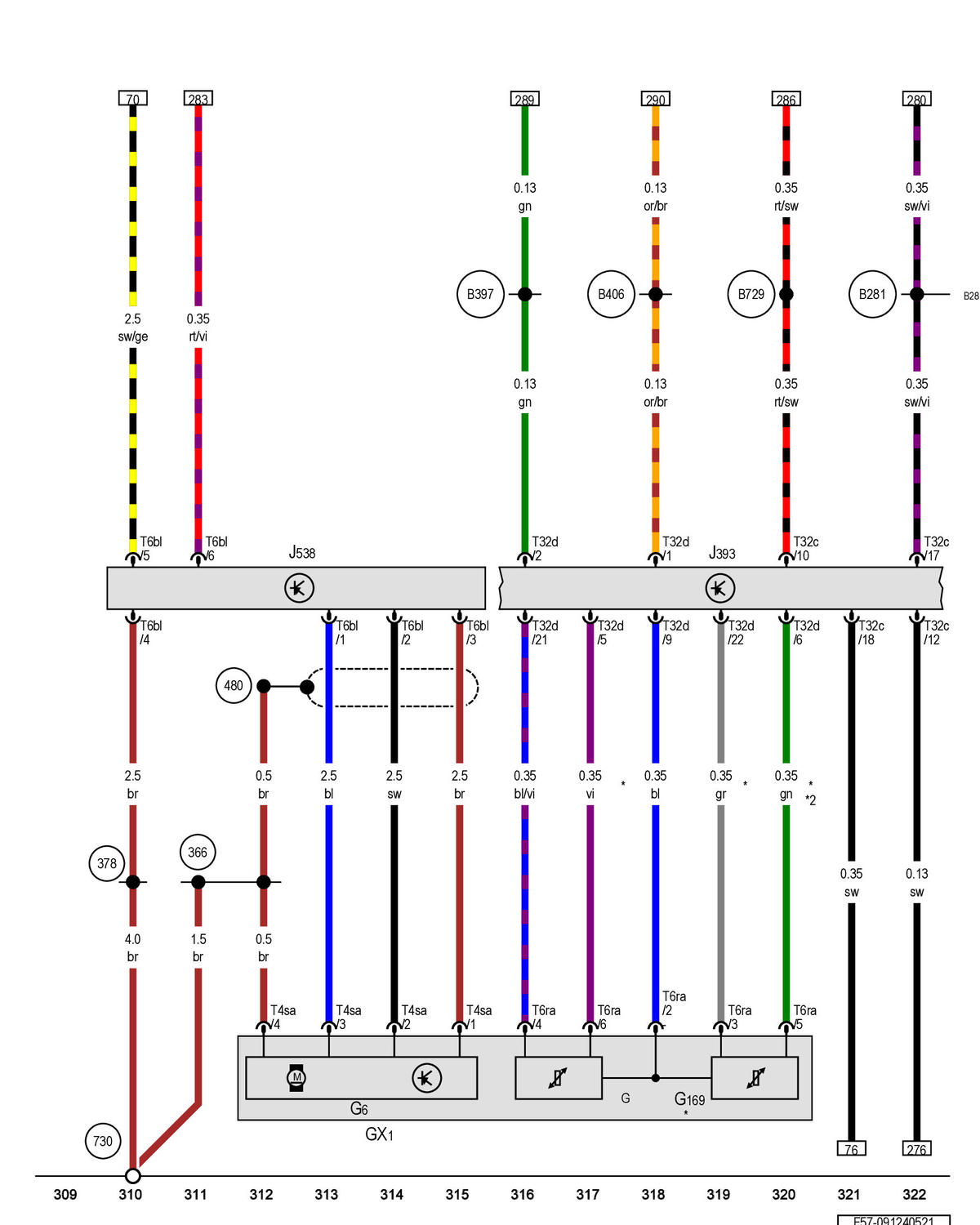

Fuel Delivery Unit, Comfort System Central Control Module, Fuel Pump Control Module

Courtesy of AUDI OF AMERICA, LLC

G

Fuel Level Sensor Type:BT, Slpdok:, Aim:BTG

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump Type:BT, Slpdok:, Aim:BTG6

G169

Fuel Level Sensor 2 Type:BT, Slpdok:, Aim:BTG169

J393

Comfort System Central Control Module Type:BT, Slpdok:, Aim:BTJ393

J538

Fuel Pump Control Module Type:BT, Slpdok:, Aim:BTJ538

T4sa

4-Pin Connector, Black

T6bl

6-Pin Connector, Black

T6ra

6-Pin Connector, Black

T32c

32-Pin Connector, Black

T32d

32-Pin Connector, Blue

366

Ground Connection 1 (in Main Wiring Harness)

378

Ground Connection 13 (in Main Wiring Harness)

480

Ground Connection (in Fuel Tank Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing Type:VB, Slpdok:, Aim:VB730

B281

Positive Connection 5 (15a) (in Main Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B729

Connection 50 (in Main Wiring Harness) 1

*

Depending on Equipment

*2

Through July 2018
