Comfort System Central Control Module -J393- Location

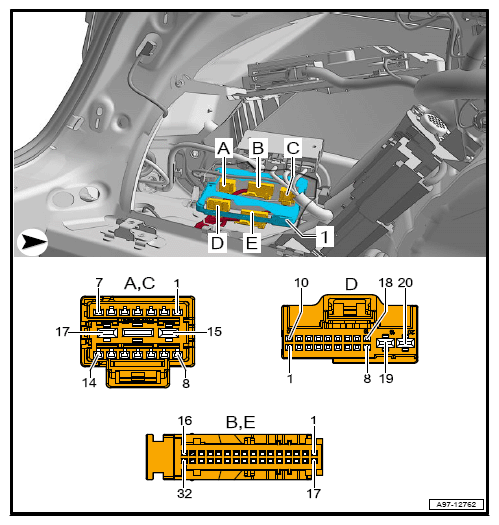

  1. Comfort System Central Control Module -J393-
  1. 17-Pin Connector -T17a- (connector A), Brown
  2. 32-Pin Connector -T32c- (connector C), Black
  3. 17-Pin Connector -T17b- (Connector B), Black
  4. 20-Pin Connector -T20e- (Connector E), Black
  5. 32-Pin Connector -T32d- (connector D), Blue
G12767567Courtesy of AUDI OF AMERICA, LLC
