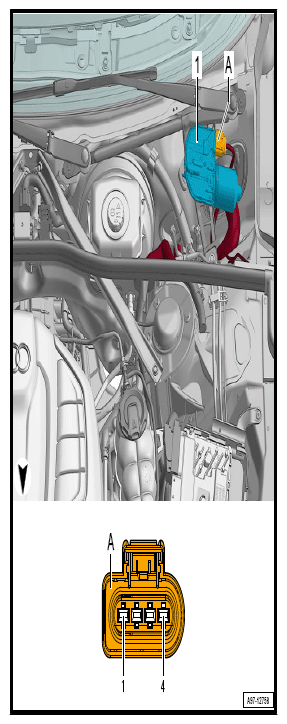

Wiper Motor Control Module -J400- Connector View, LHD

NOTE: Illustration Shows Location For Left-Hand Drive Models. In Right-Hand Drive Models, Installation Is Mirror-Inverted In Plenum. The Pin Arrangements Are Also Different → WIPER MOTOR CONTROL MODULE -J400- CONNECTOR VIEW, RHD

4-Pin Connector -T4FR- (A)

G12767186Courtesy of AUDI OF AMERICA, LLC
T4fr (A) Designation
1 Data-Bus Wire (LIN-Bus)
2
3 Terminal 31
4 Terminal 30
