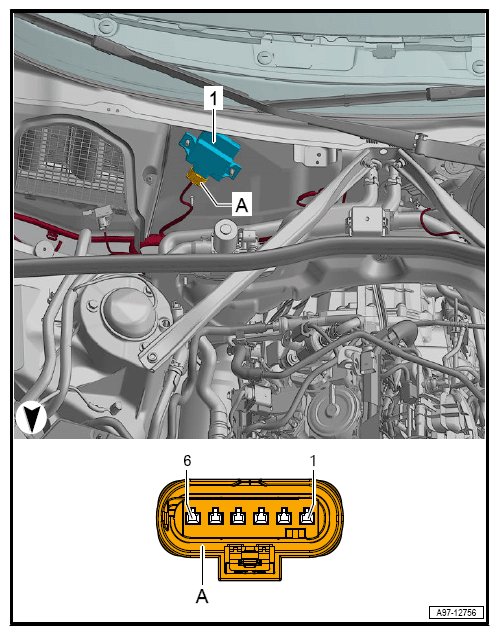

Structure Borne Sound Control Module -J869-, Location

NOTE: Illustration Shows Location For Left-Hand Drive Models. In Right-Hand Drive Models, Installation Is Mirror-Inverted.
  1. 1  - Structure-Borne Sound Control Module -J869-
  2. A  - 6-Pin Connector -T6I-, Black
G12767482Courtesy of AUDI OF AMERICA, LLC
