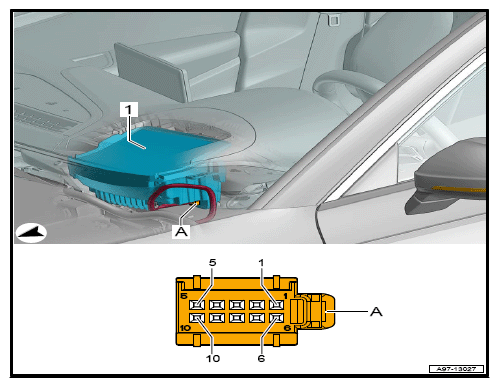

Windshield Projection Head Up Display Control Module -J898- Connector Views
10-Pin Connector -T10D- (A)
 Courtesy of AUDI OF AMERICA, LLC
|
| T10d (A) |
Designation |
| 1 |
CAN-Bus Infotainment, High |
| 2 |
CAN-Bus Infotainment, Low |
| 3 |
|
| 4 |
|
| 5 |
Terminal 30 |
| 6 |
|
| 7 |
|
| 8 |
|
| 9 |
|
| 10 |
Terminal 31 |
