Fuel Tank Leak Detection Control Module -J909- Connector Views

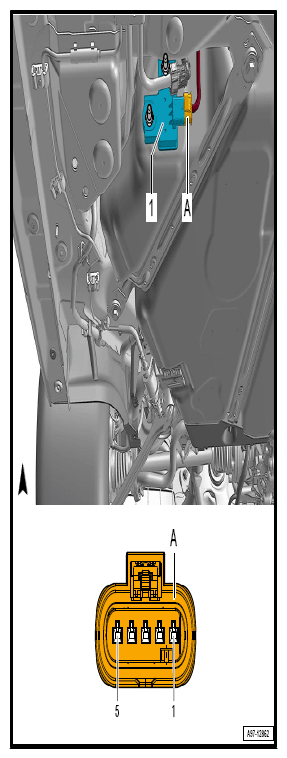

5-Pin Connector -T5SM- (A)

G12767259Courtesy of AUDI OF AMERICA, LLC
T5sm (A) Designation
1 Fuel Tank Pressure (FTP) Sensor G400
2 Engine Control Module (ECM) J623
3 Engine Control Module (ECM) J623
4 Terminal 30
5 Fuel Tank Pressure (FTP) Sensor G400
