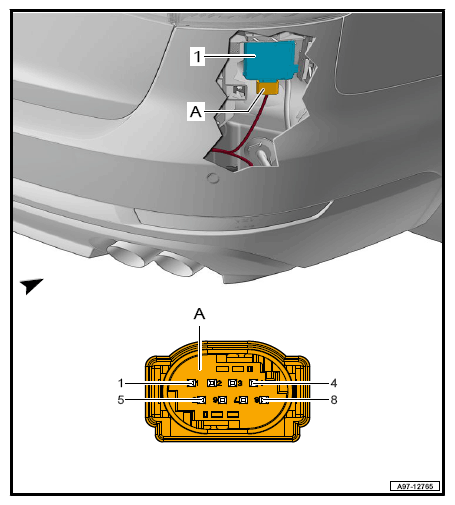

Lane Change Assistance Control Module -J769- Connector Views
Lane Change Assistance Control Module -J769- Connector Views
8-PIN CONNECTOR -T8J-
Courtesy of AUDI OF AMERICA, LLC
T8j (A)
Designation
1
Terminal 31
2
Extended System CAN-Bus High
3
Extended System CAN-Bus Low
4
5
Lane Change Assistance Control Module 2 J770
6
Lane Change Assistance Control Module 2 J770
7
8
Terminal 30
