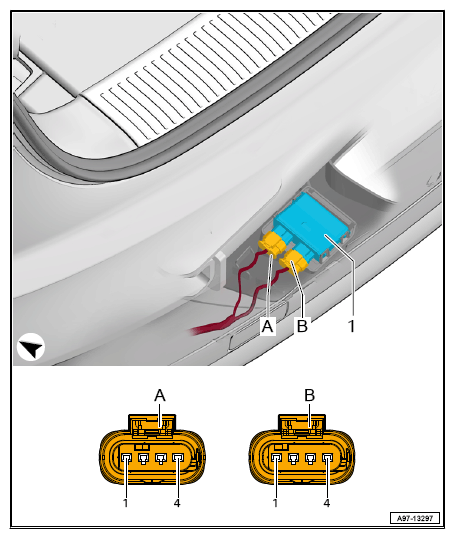

Rear Lid Opening Control Module -J938- Connector Views
4-PIN CONNECTOR -T4BS- (A)/4-PIN CONNECTOR -T4GY- (B)
 Courtesy of AUDI OF AMERICA, LLC
|
| T4bs (A) |
Designation |
| 1 |
Terminal 30 |
| 2 |
Terminal 31 |
| 3 |
Data-Bus Wire (LIN-Bus) |
| 4 |
|
| T4gy (B) |
Designation |
| 1 |
Power rear lid opener sensor G750 |
| 2 |
Power rear lid opener sensor G750 |
| 3 |
Power rear lid opener sensor 2 G760 |
| 4 |
Power Rear Lid Opener Sensor 2 G760 |
