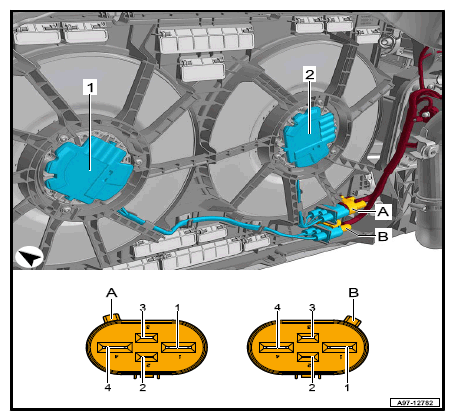

Coolant Fan Control Module 2 -J671- Connector Views
4-Pin Connector -T4Bk- (A)/4-Pin Connector -T4Bi- (B)
| T4bk (A) | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Relay and fuse carrier 1 SR1, Fuse carrier 1 ST1 |
| 3 | Engine Control Module (ECM) J623 |
| 4 | Terminal 31 |
| T4bi (B) | Designation |
|---|---|
| 1 | Terminal 30 |
| 2 | Relay and fuse carrier 1 SR1, Fuse carrier 1 ST1 |
| 3 | Engine Control Module (ECM) J623 |
| 4 | Terminal 31 |
