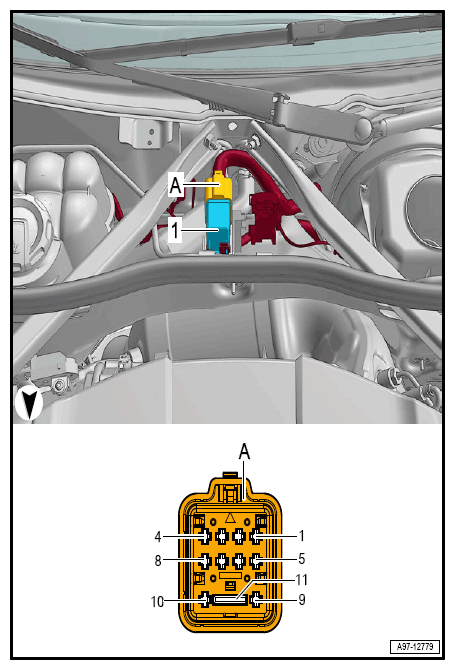

Automatic Glow Time Control Module -J179- Connector Views, Except 3.0L Diesel
11-Pin Connector -T11A- (A)
 Courtesy of AUDI OF AMERICA, LLC
|
| T11a (A) |
Designation |
| 1 |
Glow Plug 1 Q10 |
| 2 |
Glow Plug 2 Q11 |
| 3 |
Glow Plug 3 Q12 |
| 4 |
Glow Plug 4 Q13 |
| 5 |
Glow Plug 5 Q14 |
| 6 |
Terminal 87 |
| 7 |
Terminal 31 |
| 8 |
Glow Plug 6 Q15 |
| 9 |
Engine Control Module (ECM) J623 |
| 10 |
Engine Control Module (ECM) J623 |
| 11 |
Terminal 30 |
