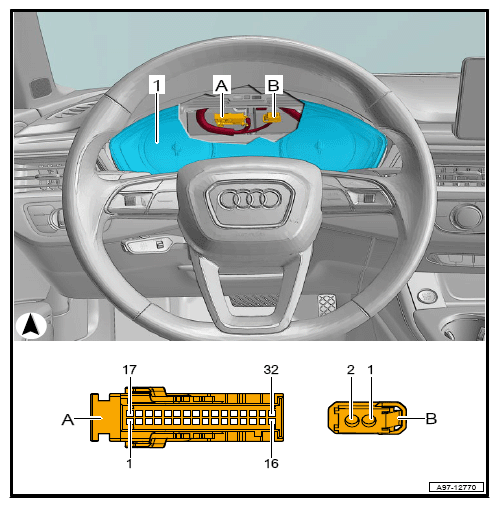

Instrument Cluster Module -J285-, W/O Display Module, Location

NOTE: Illustration Shows Location For Left-Hand Drive Models. In Right-Hand Drive Models, Installation Is Mirror-Inverted.
  1. Instrument Cluster Control Module -J285-
  1. 32-Pin Connector -T32F-, Grey
  2. Double Connector -T2Dx-, Black
    • Most Bus
G12767557Courtesy of AUDI OF AMERICA, LLC
