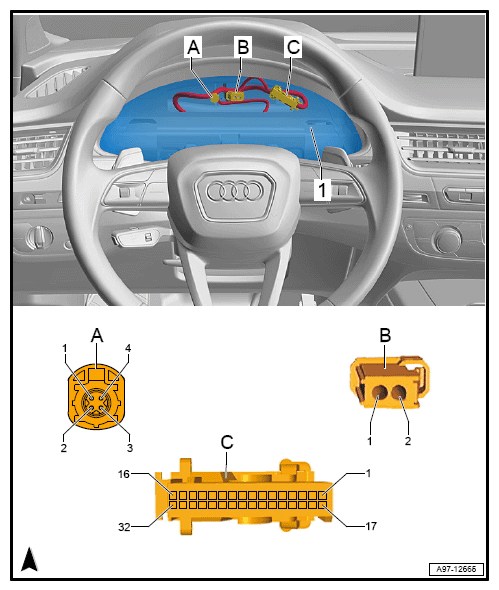

Instrument Cluster Module -J285-, W/Display Module, Location

NOTE: Illustration Shows Location For Left-Hand Drive Models. In Right-Hand Drive Models, Installation Is Mirror-Inverted.
  1. Instrument Cluster Control Module -J285-
  1. 4-Pin Connector -T4BD-, Black
  2. Double Connector -T2DX-, Black
    • MOST Bus
  3. 32-Pin Connector -T32F-, Grey
G12767226Courtesy of AUDI OF AMERICA, LLC
