Engine And Transmission, Separating

WARNING: This page is about a different car, the 2021 Audi A8 e Quattro, 2021 Audi A8 Quattro, 2020 Audi A8 e Quattro, 2020 Audi A8 Quattro, and 2019 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1332 Insert - Ring Wrench - 16mm :VAG1332/14
Scissor Lift Table - Audi Set :VAS6131/10
Scissor Lift Table - A8 Set - Adapter :VAS6131/11-1 from Scissor Lift Table - A8 Set :VAS6131/11
Articulated Joint Support :VAS6131/13-7 from the Scissor Lift Table - Q7 Set :VAS6131/13
Hose Clip Pliers :VAS6362
Wrench - 21mm :T40263
Adapter :T40314

Procedure

Engine/transmission assembly removed and placed on the :VAS6131B .

Vehicles without high-voltage system:

-- Remove the ribbed belt tensioner for the A/C compressor. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .

-- Remove the starter generator. Refer to GENERATOR, REMOVING AND INSTALLING . The subframe remains in the installed position.

Continuation for All Vehicles:

-- Remove the ATF cooler. Refer to the appropriate service information .

-- Remove the left transmission mount. Refer to LEFT TRANSMISSION MOUNT, REMOVING AND INSTALLING .

-- Remove the lower cover -1- from the transmission in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the engine by the timing mechanism skipping.

- Only let the engine turn in the direction of engine rotation.

-- To loosen the bolts for the torque converter, counterhold the crankshaft using the :T40263 and :T40314 on the vibration damper.

-- Remove the six bolts -arrow- for the torque converter on the drive plate -1-. Turn the crankshaft an additional 60° in the direction of engine rotation.

Courtesy of AUDI OF AMERICA, LLC

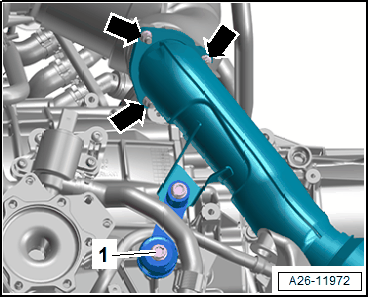

-- Remove the left and right bolt -1- and nuts -arrows- for the front muffler.

Courtesy of AUDI OF AMERICA, LLC

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the coupling due to improper handling.

- Coupling must not be bent more than 10°.

- Do not load the coupling on the cable.

-- Remove the left and right bolts -arrows- and the front muffler.

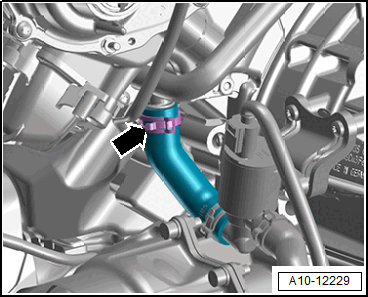

-- Loosen the hose clamp -arrow- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

Vehicles without high-voltage system:

Fig 2: Right Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

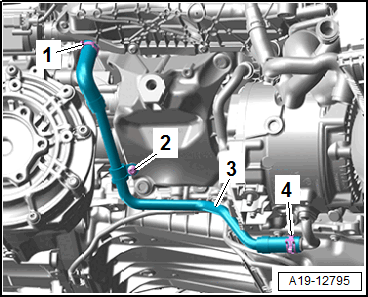

-- Remove the bolt -2-, loosen the hose clamp -1-, and remove the right coolant pipe -3-.

-- Set up the : VAS6131B as follows:

Fig 3: Scissor Lift Chart

Courtesy of AUDI OF AMERICA, LLC

The remaining mounting elements remain unchanged.

Table Coordinates	Components from the :VAS6131/10 , :VAS6131/11-1 and :VAS6131/13-7
C3	VAS6131/13-7

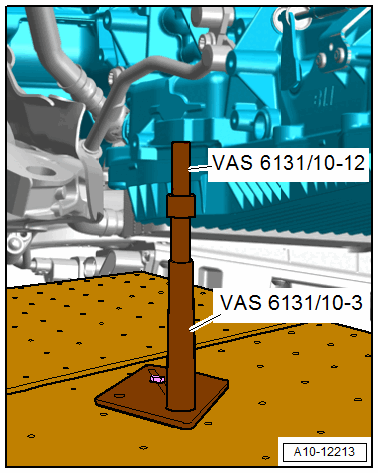

C10	/10-1	/10-3	/10-5	/10-12
F10	/10-1	/10-3	/10-5	/11-1

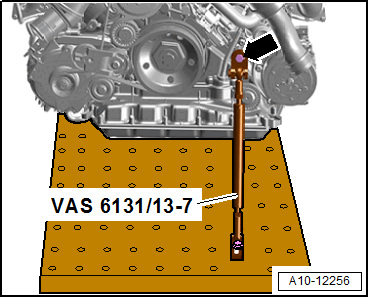

-- Tighten the :VAS6131/13-7 in the tensioner threaded hole -arrow- for the A/C compressor ribbed belt.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the engine supports on the Scissor Lift Table to 20 Nm.

Vehicles with high-voltage system:

Courtesy of AUDI OF AMERICA, LLC

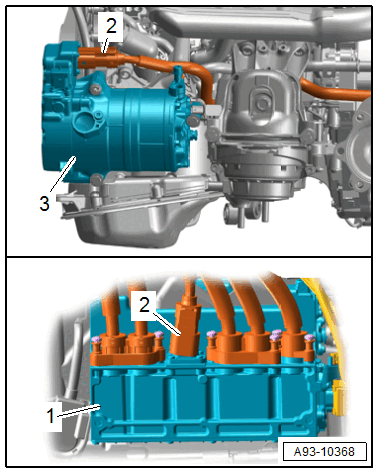

-- Release and remove the Electrical A/C Compressor High-Voltage Cable -P3- -item 2- from the Electrical A/C Compressor -V470- -item 3-.

-- To do so remove the connector lock -3- -arrow A-.

Fig 4: High-Voltage Connector, Releasing:

Courtesy of AUDI OF AMERICA, LLC

-- Press the release -4- in the -direction of the arrow B- and remove the connector -1- approximately 5 mm up to the next release point.

-- Press the release -5- in the -direction of the arrow D- and remove the connector from the connector mount -2- -arrow C-.

-- Free up the Electrical A/C Compressor High-Voltage Cable -P3- and secure to the transmission.

-- Set up the Scissor Lift Table : VAS6131B as follows:

Fig 5: Scissor Lift Chart

Courtesy of AUDI OF AMERICA, LLC

The remaining mounting elements remain unchanged.

Table Coordinates	Parts from Scissor Lift Table - Audi Set :VAS6131/10 and Adapter :VAS 6131/11-1
C10	/10-1	/10-3	/10-5	/10-12
F10	/10-1	/10-3	/10-5	/11-1

Continuation for All Vehicles:

Courtesy of AUDI OF AMERICA, LLC

-- Place the mounting element from the left :VAS6131/10 on the transmission.

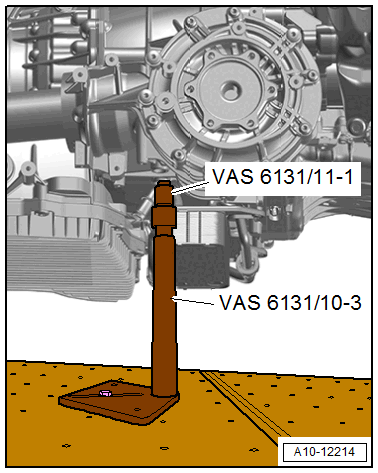

-- Place the mounting elements from the :VAS6131/10 and :VAS6131/11-1 on the right of the transmission.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the left and right spindles upward until all the mounting pins come into contact with the mounting points.

-- Fasten the mounting element base plates to 20 Nm on the :VAS6131B .

-- Remove the bolts -2 through 11- that attach the engine to the transmission.

Fig 6: Engine to Transmission Bolts And Alignment Sleeves -A-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -1- for the starter using the : VAG1332/14 .

-- Loosen the clamping screws on the sides of the :VAS6131B and pull the rear table top with the transmission slightly toward the rear in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the transmission all the way to the rear. If necessary, lower it slightly using the front spindles.
