Selector Lever Handle, Removing And Installing: Removing

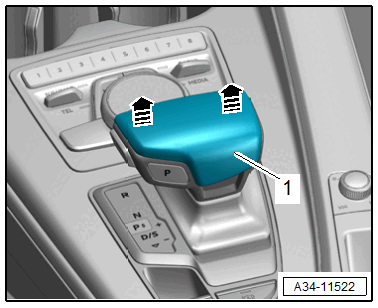

GWWA34-11522Courtesy of AUDI OF AMERICA, LLC

-- Remove the selector lever handle upper section -1- upwards in direction of -arrows-.

-- Carefully pry out the selector lever boot on the side using the :3409  in direction of -arrow-.

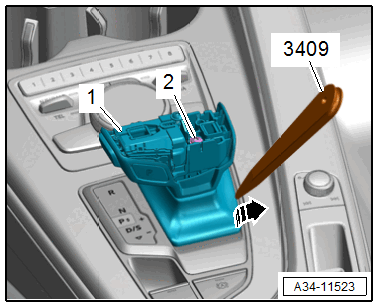

GWWA34-11523Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Pull the selector lever handle lower section -1- upward.
