Camshaft Position Sensor, Removing And Installing: Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

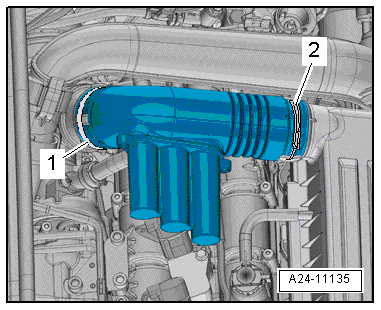

-- Loosen the hose clamps -1 and 2- and remove the air duct pipe.

Camshaft Position Sensor -G40- :

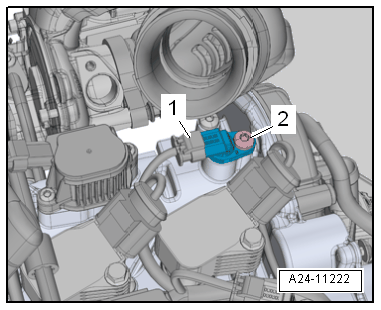

-- Disconnect the connector -1-.

-- Remove the bolt -2- and then remove the Camshaft Position Sensor -G40-.

Camshaft Position Sensor 2 -G163- :

Courtesy of AUDI OF AMERICA, LLC

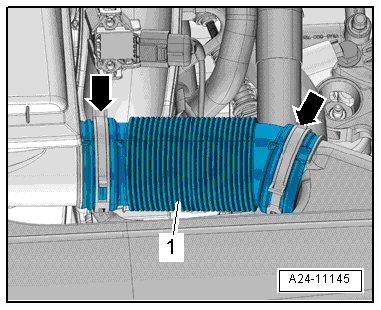

-- Loosen the hose clamps -arrows- and remove the air duct -1-.

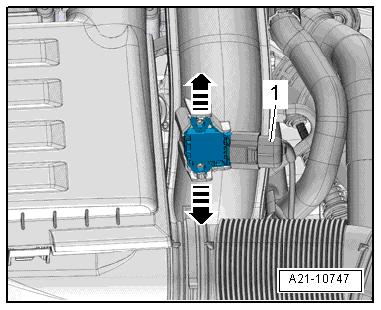

-- Disconnect the connector -1- from the Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor 2 -G299-.

All excluding e-tron:

-- Free up the air duct hoses on the air duct pipe.

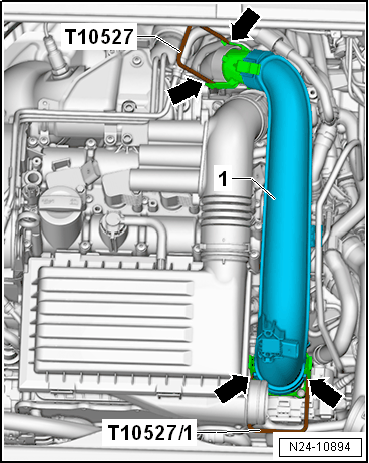

-- Release the retainers -arrows- using the Intake Manifold Release Tool:T10527  and :T10527/1  and remove the air duct pipe -1-.

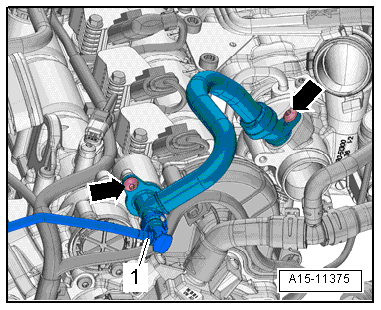

-- Remove the bolts -arrows- and remove the crankcase ventilation hose with the connected hose to the EVAP canister -1-.

e-tron:

Courtesy of AUDI OF AMERICA, LLC

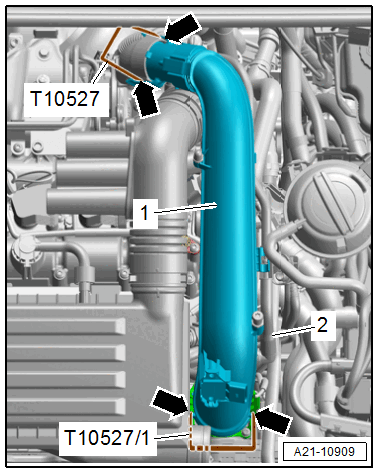

-- Remove the line -2- for the EVAP system, to do so push the release buttons on both sides.

-- Free up the wire for the EVAP system at the air duct pipe.

-- Release the retainers -arrows- using the :T10527  and :T10527/1  .

-- Remove the air duct pipe -1-.

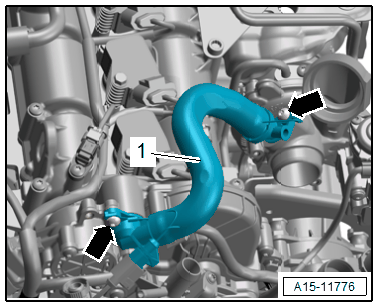

-- Remove the bolts -arrows- and then remove the crankcase ventilation hose -1-.

Courtesy of AUDI OF AMERICA, LLC

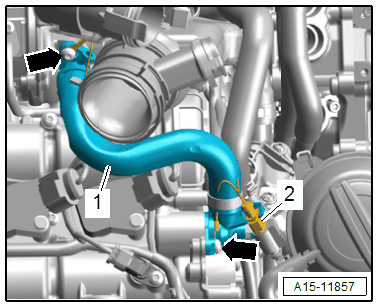

Version with Crankcase Ventilation Heating:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Remove the bolts -arrows- and then remove the crankcase ventilation hose.

• Versions with crankcase ventilation heater: during installation, the ground wires must be secured again with the bolts -arrows-.

Continuation for All:

Courtesy of AUDI OF AMERICA, LLC

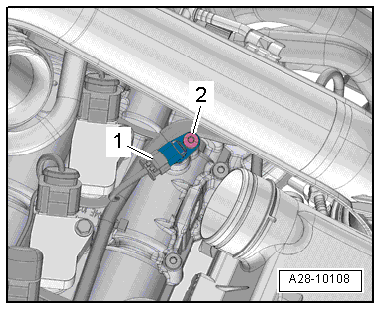

-- Disconnect the connector -1-.

-- Remove the bolt -2- and then remove the Camshaft Position Sensor 2 -G163-.
