Left And Right Front Bass Speaker -R21- / -R23-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

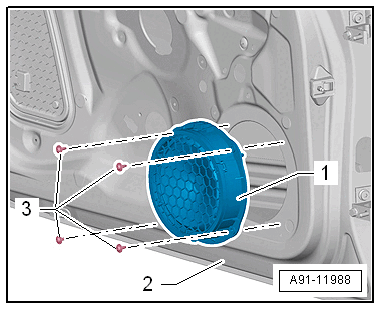

-- Release and disconnect the connector from the Left Front Bass Speaker -R21- -1-.
-- Remove the bolts -3- from the Left Front Bass Speaker -R21- -1-.
-- Remove the Left Front Bass Speaker -R21- -1- from the door -2-.
