Component Location Overview - Sound System, Convertible

WARNING: This page is about a different variant/trim than selected.

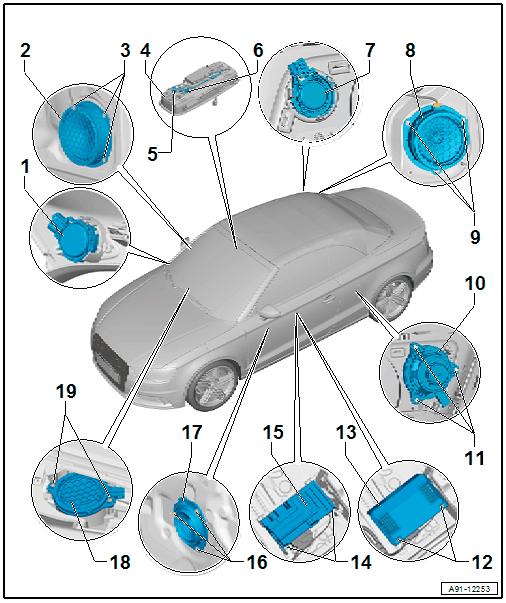

Fig 1: Component Location Overview - Sound System, Convertible

Courtesy of AUDI OF AMERICA, LLC

Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- Removing and installing. Refer to LEFT AND RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-
- Removing and installing. Refer to LEFT AND RIGHT FRONT BASS SPEAKER -R21- / -R23-, REMOVING AND INSTALLING .
Bolt
- 4 Nm
- Quantity: 3
Front Interior Lamp -W1-
4-Pin Connector -T4-
Interior Microphone -R74-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Removing and installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Removing and installing. Refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING, 5-DOOR VEHICLES AND SEDAN .
Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-
- Removing and installing. Refer to LEFT/RIGHT REAR BASS SPEAKER -R15- / -R17-, REMOVING AND INSTALLING, 5-DOOR VEHICLES AND SEDAN .
Bolt
- 2 Nm
- Quantity: 3
Left Effects Speaker -R209- /Right Effects Speaker -R210-
- Removing and installing. Refer to LEFT/RIGHT EFFECTS SPEAKER -R209- / -R210-, REMOVING AND INSTALLING, 5-DOOR VEHICLES .
Bolt
- 2 Nm
- Quantity: 3
Expanding Rivet
- Quantity: 2
Cover
Bolt
- 3 Nm
- Quantity: 2
Digital Sound System Control Module -J525-
- Connector Assignment. Refer to CONNECTOR ASSIGNMENTS .
- Removing and installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
Bolt
- 4 Nm
- Quantity: 3
Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-
- Removing and installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
Center Speaker -R208-
- Removing and installing. Refer to CENTER SPEAKER, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
