Emergency Call Module Speaker -R335-: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn off the ignition and all electrical equipment and remove the ignition key.

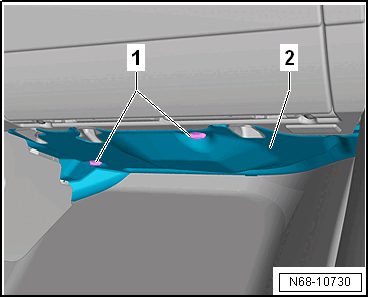

-- Remove the clips -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -2- in the front passenger footwell from the A/C unit.

-- Release and disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

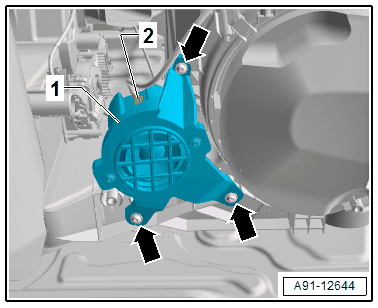

-- Remove the bolts -arrows-.

-- Remove the Emergency Call Module Speaker -R335- -1- downward from the A/C unit.
