External Audio Source Connection -R199-, REMOVING AND INSTALLING, THROUGH MY 2016
WARNING: This page is about a different variant/trim than selected.

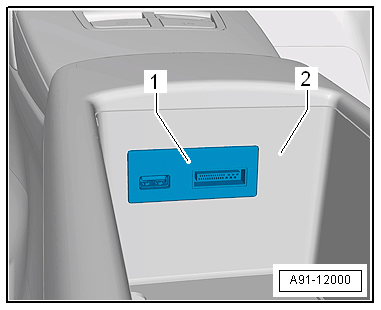

The External Audio Source Connection -R199- -1- is located in the center console storage compartment -2- under the front center armrest.
Removing
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the front center console storage compartment. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
-- Release and disconnect the connectors from the External Audio Source Connection -R199-.
-- Press the tabs -arrows- on the External Audio Source Connection -R199- -2- and remove the External Audio Source Connection -R199- -2- from the storage compartment -1-.
