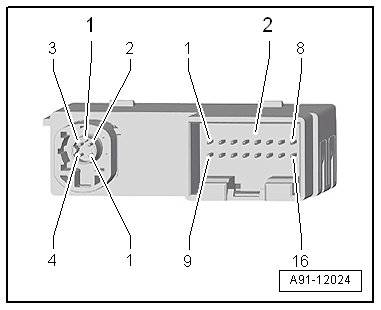

AMI Connector - USB Connection Baseplate R193
- 4-Pin Connector -T4u-
- 16-Pin Connector -T16m-
1 - 4-Pin Connector T4u
All pins are connected to the Information Electronics Control Module 1 -J794-.
- Ground
- D (-)
- Detect
- D (+)
2 - 16-Pin Connector T16m
All pins are connected to the Information Electronics Control Module 1 -J794-.
- LF ground
- LF right
- Not Assigned
- Not Assigned
- iPod, ACC Power
- Detect
- USB, +5 V
- USB, Ground
- LF left
- LF ground Shielding
- CVBS cable (+)
- CVBS cable (-)
- iPod data
- iPod data
- Terminal 30
- Terminal 31
