Overview - Transmission Fluid Circuit

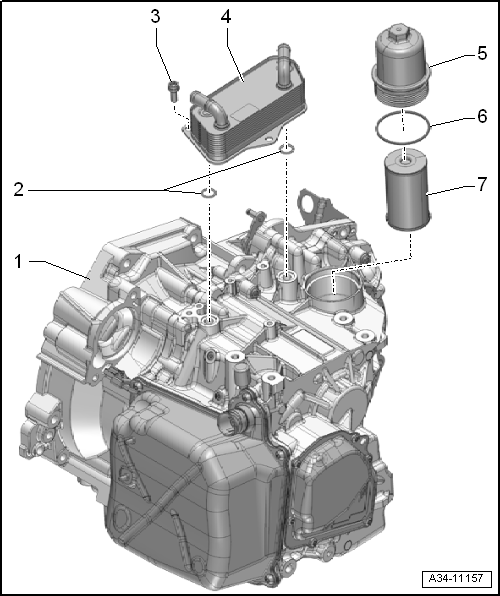

Fig 1: Transmission Fluid Circuit Exploded View

Courtesy of AUDI OF AMERICA, LLC

Transmission
O-Rings
- Always replace after removing
Bolt
- 20 Nm + 45°
- Always replace after removing
Transmission Fluid Cooler
- Removing and installing. Refer to TRANSMISSION FLUID COOLER, REMOVING AND INSTALLING .
Filter Housing
- 20 Nm
- Removing and installing. Refer to TRANSMISSION FLUID FILTER, REMOVING AND INSTALLING .
O-ring
- Always replace after removing
Filter Element
- Always replace O-ring after removing
- With O-ring on suction collar
- Removing and installing. Refer to TRANSMISSION FLUID FILTER, REMOVING AND INSTALLING .
