Overview - Selector Lever Handle, AUDI TT

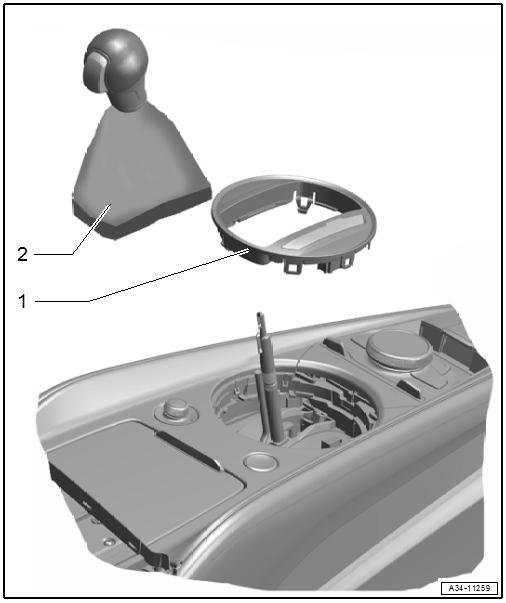

Fig 1: Selector Lever Handle Exploded View (Audi TT)

Courtesy of AUDI OF AMERICA, LLC

Selector Lever Transmission Range Position Display Unit -Y26-
- Unit with trim
- Removing and Installing. Refer to Selector Lever Transmission Range Position Display Unit -Y26-, REMOVING AND INSTALLING .
Selector Lever Handle
- With selector lever boot
- Removing and Installing. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
- Locking Button on Selector Lever Handle, Bringing into Installation Position. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION .
