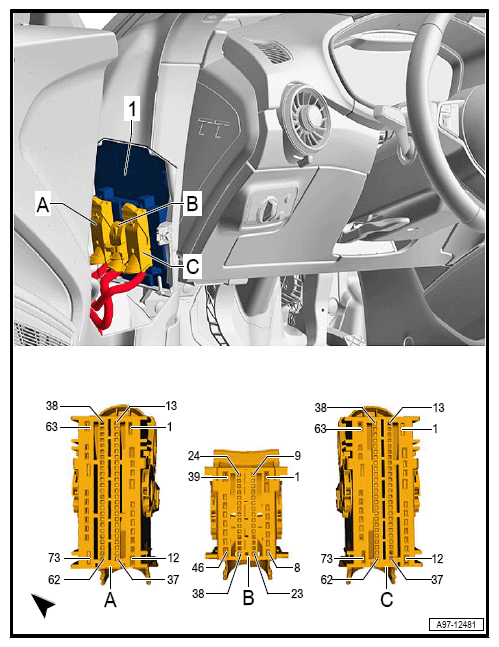

Vehicle Electrical System Control Module -J519- Location

  1. 1  - Vehicle Electrical System Control Module -J519-
  2. A  - 73-Pin Connector -T73a-, black
  3. B  - 46-Pin Connector -T46a-, black
  4. C  - 73-Pin Connector -T73c-, black
G12778531Courtesy of AUDI OF AMERICA, LLC
