Vehicle Electrical System Control Module -J519- Connector Views, T46A

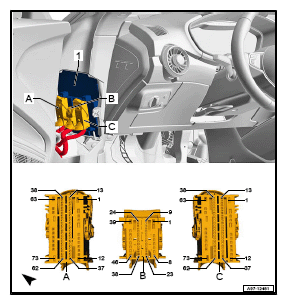

46-PIN CONNECTOR -T46A- (B)
| T46A (B) | Designation |
|---|---|
| 1 | Right Low Beam Lamp |
| 2 | Right High Beam Lamp |
| 3 | |
| 4 | |
| 5 | Right Fog Lamp |
| 6 | Left Cornering Lamp |
| 7 | Windshield and Rear Window Washer Pump V59 |
| 8 | |
| 9 | D101 Connection 1 (in engine compartment wiring harness) Left Washer Nozzle Heater Z20 Right Washer Nozzle Heater Z21 |
| 10 | |
| 11 | Back-Up Light Switch F4 |
| 12 | D53 Right brake wear indicator connection (in engine compartment wiring harness) Right Front Brake Pad Wear Sensor G35 |
| 13 | Brake Fluid Level Warning Switch F34 |
| 14 | D103 Connection 3 (in engine compartment wiring harness) Engine hood contact switch F266 Hood contact switch 2 F329 |
| 15 | |
| 16 | Engine Coolant Level (ECL) Warning Switch F66 |
| 17 | |
| 18 | |
| 19 | Sensor Ground to 327 Sensor Ground Connection (in engine compartment wiring harness) |
| 20 | Left Front Turn Signal, Left Front Turn Signal Lamp M5 |
| 21 | |
| 22 | |
| 23 | |
| 24 | Horn Relay J413 |
| 25 | |
| 26 | |
| 27 | Outside Air Temperature Sensor G17 |
| 28 | Windshield Washer Fluid Level Sensor G33 |
| 29 | |
| 30 | LIN-Bus, to Windshield Wiper Motor V |
| 31 | |
| 32 | Left Daytime Running Lamp and Parking Light Control Module J860 |
| 33 | |
| 34 | |
| 35 | |
| 36 | |
| 37 | |
| 38 | |
| 39 | Left High Beam Lamp, Left LED Headlamp Power Output Stage 1 A31 |
| 40 | |
| 41 | |
| 42 | |
| 43 | |
| 44 | Right Cornering Lamp |
| 45 | Left Fog Lamp |
| 46 | Headlamp Washer Pump V11 |
