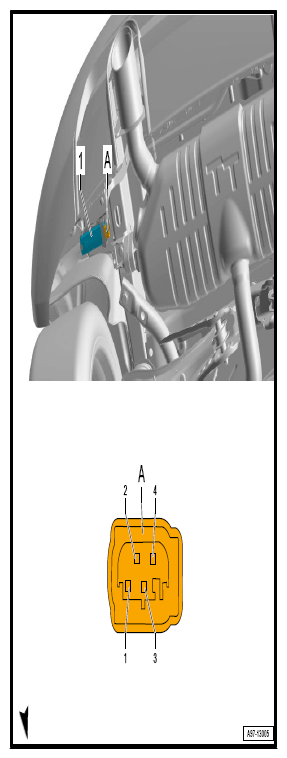

Tire Pressure Monitoring Control Module -J502- Connector Views
12-PIN CONNECTOR -T4CI- (A)
| T4CI (A) | Designation |
|---|---|
| 1 | Extended System CAN-Bus Low, to B109 CAN-Bus Extended Low Connection 1 (in main wiring harness) |
| 2 | Terminal 30, from Fuse panel C SC |
| 3 | Extended System CAN-Bus High, to B108 CAN-Bus Extended High Connection 1 (in main wiring harness) |
| 4 | Terminal 31, to 729 Ground connection on left rear wheel housing |
