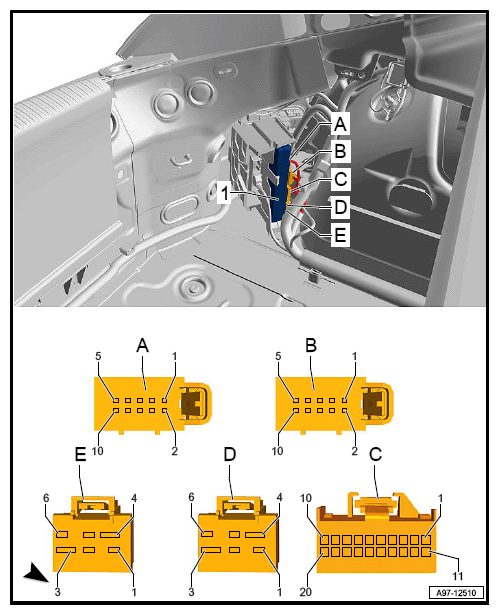

Convertible Top Control Module -J256- Connector Views
20-PIN CONNECTOR -T20E- (C)/10-PIN CONNECTOR -T10A- (B)/6-
PIN CONNECTOR -T6D- (D)/6-PIN CONNECTOR -T6E- (E)
| T20E (C) | Designation |
|---|---|
| 1 | Glove Compartment Lock Motor V224 |
| 2 | Glove Compartment Lock Motor V224 |
| 3 | |
| 4 | |
| 5 | Convertible Top Operation Switch E137 |
| 6 | Convertible Top Operation Switch E137 |
| 7 | Connector station in engine compartment, left THRL Convertible Top Locking Motor V223 |
| 8 | Connector station in engine compartment, left THRL M33 Connection 2 (in convertible top wiring harness) Convertible Top Open Position Switch F171 Convertible top front switch F202 |
| 9 | M32 Connection 1 (in convertible top wiring harness) Convertible top motor V82 Convertible top motor 2 V576 |
| 10 | |
| 11 | Comfort System CAN-Bus Low, to B406 Comfort System CAN-Bus Low Connection 1 (in main wiring harness) B407 Comfort System CAN-Bus Low Connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 12 | Comfort System CAN-Bus High, to B397 Comfort System CAN-Bus High Connection 1 (in main wiring harness) B398 Comfort System CAN-Bus High Connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 13 | Connector station in engine compartment, left THRL Convertible Top Lock Switch (closed) F295 |
| 14 | Wind Deflector Switch (Cabrio) E278 |
| 15 | Wind Deflector Switch (Cabrio) E278 |
| 16 | Connector station in engine compartment, left THRL Convertible top front switch F202 |
| 17 | Connector station in engine compartment, left THRL Convertible Top Open Position Switch F171 |
| 18 | Convertible Top Front Lock Switch F172 |
| 19 | Convertible Top Front Lock Switch F172 |
| 20 |
| T10A (B) | Designation |
|---|---|
| 1 | |
| 2 | Convertible top motor 2 V576 |
| 3 | Convertible top motor 2 V576 |
| 4 | Convertible top motor V82 |
| 5 | Convertible top motor V82 |
| 6 | |
| 7 | |
| 8 | |
| 9 | |
| 10 |
| T6D (D) | Designation |
|---|---|
| 1 | Convertible top motor 2 V576 |
| 2 | Connector station in engine compartment, left THRL Convertible Top Lock Switch (open) F294 |
| 3 | Convertible top motor V82 |
| 4 | Convertible top motor 2 V576 |
| 5 | Connector station in engine compartment, left THRL Convertible Top Locking Motor V223 |
| 6 | Convertible top motor V82 |
| T6E (E) | Designation |
|---|---|
| 1 | |
| 2 | Wind Deflector Motor (Cabrio) V186 |
| 3 | Terminal 30, from Fuse panel D SD B323 Positive connection 9 (30a) (in main wiring harness) Safety fuse 1 S131 |
| 4 | Terminal 31, to 387 Ground Connection 22 (in main wiring harness) 368 Ground Connection 3 (in main wiring harness) 729 Ground connection on left rear wheel housing |
| 5 | Wind Deflector Motor (Cabrio) V186 |
| 6 | Terminal 30, from Fuse Panel F SF B323 Positive connection 9 (30a) (in main wiring harness) Safety fuse 1 S131 |
