Vehicle Electrical System Control Module -J519- Connector Views, T73C

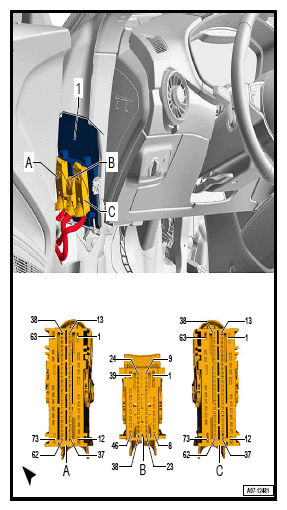

73-PIN CONNECTOR -T73C- (C)
| T73C (C) | Designation |
|---|---|
| 1 | Terminal 30, from Fuse Panel C SC Safety fuse 3 S133 |
| 2 | |
| 3 | |
| 4 | |
| 5 | Left Low Beam, to D152 Positive connection 1 (56b) (in engine compartment wiring harness) |
| 6 | Right Rear Fog Lamp L47 |
| 7 | |
| 8 | Right brake lamp bulb M10 |
| 9 | B466 Connection 2 (in main wiring harness) Left Luggage Compartment Light W18 Right Luggage Compartment Light W35 |
| 10 | Left tail lamp bulb M4 |
| 11 | |
| 12 | Terminal 30g, to Fuse panel C SC B559 Positive connection 1 (30g) (in main wiring harness) Glove Compartment Lamp Switch E26 Front roof module WX3 |
| 13 | |
| 14 | Access/start authorization control module J518 |
| 15 | |
| 16 | Terminal 31, to 683 Ground Connection (on right front side member) |
| 17 | |
| 18 | |
| 19 | |
| 20 | |
| 21 | |
| 22 | |
| 23 | |
| 24 | Rear window defogger relay J9 |
| 25 | |
| 26 | |
| 27 | |
| 28 | |
| 29 | |
| 30 | |
| 31 | Right Rear Turn Signal Lamp M8 |
| 32 | |
| 33 | |
| 34 | Switch Module, instrument panel, center. EX22 Driving profile selection button E735 |
| 35 | |
| 36 | |
| 37 | |
| 38 | |
| 39 | |
| 40 | |
| 41 | |
| 42 | Switch Module, instrument panel, center. EX22 Emergency Flasher Button E229 |
| 43 | |
| 44 | |
| 45 | |
| 46 | |
| 47 | Switch Module, instrument panel, center. EX22 Rear Spoiler Adjustment Indicator Lamp K242 |
| 48 | Switch Module, instrument panel, center. EX22 Emergency Flasher Indicator Lamp K6 |
| 49 | |
| 50 | |
| 51 | Switch Module, instrument panel, center. EX22 Stop/Start Mode Indicator Lamp K259 |
| 52 | |
| 53 | |
| 54 | |
| 55 | |
| 56 | |
| 57 | |
| 58 | Terminal 54, from D73 Positive connection (54) (in engine compartment wiring harness) Brake Light Switch F Brake Pedal Switch F63 |
| 59 | |
| 60 | Switch Module, instrument panel, center. EX22 Stop/Start Mode Button E693 |
| 61 | |
| 62 | Terminal 58s, to B731 Connection 1 (58s) in main wiring harness |
| 63 | Terminal 31, to 366 Ground Connection 1 (in main wiring harness) 367 Ground Connection 2 (in main wiring harness) 639 Ground Connection (on left A-pillar) |
| 64 | |
| 65 | |
| 66 | |
| 67 | Front roof module WX3 |
| 68 | |
| 69 | |
| 70 | |
| 71 | |
| 72 | |
| 73 | Terminal 30, from Fuse Panel C SC Safety fuse 2 S132 |
