Vehicle Electrical System Control Module -J519- Connector Views, T73A

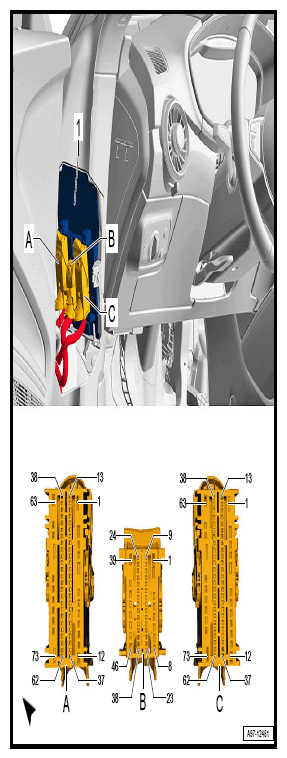

73-PIN CONNECTOR -T73A- (A)
| T73A (A) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | Fuel Tank Lid Unlock Motor V155 |
| 4 | Fuel Tank Lid Unlock Motor V155 |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| 9 | Rear Lid Lock Unit VX25 Rear Lid Central Locking System Motor V53 |
| 10 | |
| 11 | Backup Lights, to B107 Connection (back-up lamp) inside main wiring harness |
| 12 | Terminal 31, to 366 Ground Connection 1 (in main wiring harness) 367 Ground Connection 2 (in main wiring harness) 639 Ground Connection (on left A-pillar) |
| 13 | Terminal 15, to Power Supply Relay (terminal 15) J329 |
| 14 | Terminal 15, to B277 Positive connection 1 (15a) in main wiring harness |
| 15 | LIN-Bus, to B528 LIN-Bus Connection 1 (in main wiring harness) |
| 16 | Comfort System CAN-Bus High, to B397 Comfort System CAN-Bus High Connection 1 (in main wiring harness) B398 Comfort System CAN-Bus High Connection 2 (in main wiring harness) |
| 17 | Comfort System CAN-Bus Low, to B406 Comfort System CAN-Bus Low Connection 1 (in main wiring harness) B407 Comfort System CAN-Bus Low Connection 2 (in main wiring harness) |
| 18 | |
| 19 | |
| 20 | CAN-Bus powertrain, Low to B390 Powertrain CAN-Bus Low Connection 1 (in main wiring harness) |
| 21 | CAN-Bus powertrain, High to B383 Powertrain CAN-Bus High Connection 1 (in main wiring harness) |
| 22 | |
| 23 | |
| 24 | |
| 25 | |
| 26 | |
| 27 | |
| 28 | LIN-Bus, to B698 LIN-Bus Connection 3 (in main wiring harness) Light Switch E1 Humidity Sensor G355 Rain/Light Recognition Sensor G397 |
| 29 | Light Switch E1 |
| 30 | |
| 31 | |
| 32 | Rear Lid Lock Cylinder Unlock Button F248 |
| 33 | |
| 34 | |
| 35 | |
| 36 | |
| 37 | |
| 38 | |
| 39 | |
| 40 | |
| 41 | |
| 42 | |
| 43 | |
| 44 | Access/start authorization control module J518 |
| 45 | |
| 46 | |
| 47 | Access/start authorization control module J518 |
| 48 | |
| 49 | Switch Module, instrument panel, center. EX22 Rear Spoiler Switch E127 |
| 50 | |
| 51 | |
| 52 | Rear Lid Lock Unit VX25 Trunk Lid Alarm Switch F123 |
| 53 | Rear Lid Lock Unit VX25 Trunk Lock/Alarm/Central Locking Switch F124 |
| 54 | Access/start authorization control module J518 |
| 55 | |
| 56 | |
| 57 | B468 Connection 4 (in main wiring harness) Suppressor C24 High-mount Brake Light M25 |
| 58 | |
| 59 | B132 License plate lamp connection (in interior wiring harness) License Plate Light X |
| 60 | Left Brake Lamp M9 |
| 61 | |
| 62 | |
| 63 | Terminal 31, to 366 Ground Connection 1 (in main wiring harness) 367 Ground Connection 2 (in main wiring harness) 639 Ground Connection (on left A-pillar) |
| 64 | Right Back-Up Lamp M17 |
| 65 | Right tail lamp bulb M2 |
| 66 | Terminal 30, from Fuse Panel C SC Safety fuse 2 S132 |
| 67 | |
| 68 | |
| 69 | |
| 70 | |
| 71 | Left Rear Turn Signal Lamp M6 |
| 72 | Left Rear Fog Lamp L46 |
| 73 | Terminal 30, from Fuse Panel C SC Safety fuse 3 S133 |
