Roof Electronics Control Module -J528- Location

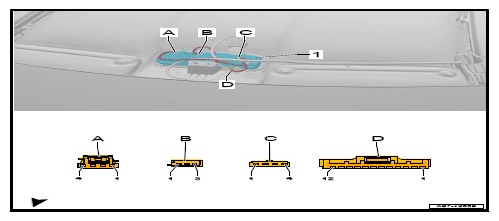

  1. 1  - Roof Electronics Control Module -J528-
  2. A  - 4-Pin Connector -T4bg-, black
  3. B  - 3-Pin Connector -T3b-, black
  4. C  - 4-Pin Connector -T4d-, black
  5. D  - 12-Pin Connector -T12c-, black
G12778538Courtesy of AUDI OF AMERICA, LLC
