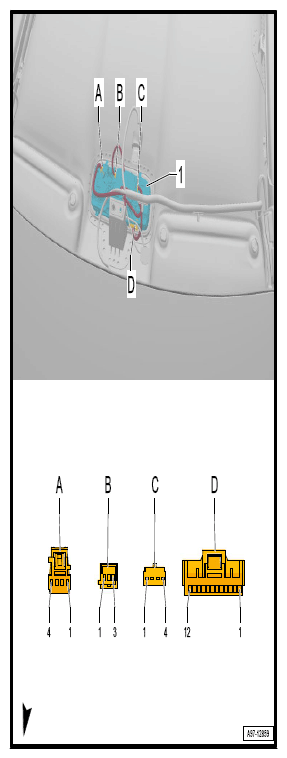

Roof Electronics Control Module -J528- Connector Views
12-PIN CONNECTOR -T12C- (D)
| T12C (D) | Designation |
|---|---|
| 1 | |
| 2 | |
| 3 | |
| 4 | Airbag Control Module J234 |
| 5 | Airbag Control Module J234 |
| 6 | Airbag Control Module J234 |
| 7 | Automatic Day/Night Interior Mirror Y7 |
| 8 | Terminal 30, from Fuse panel C SC |
| 9 | Vehicle Electrical System Control Module J519 |
| 10 | Terminal 31, to 639 Ground Connection (on left A-pillar) |
| 11 | Terminal 58s, to B731 Connection 1 (58s) in main wiring harness |
| 12 | Terminal 30, from B559 Positive connection 1 (30g) in main wiring harness |
