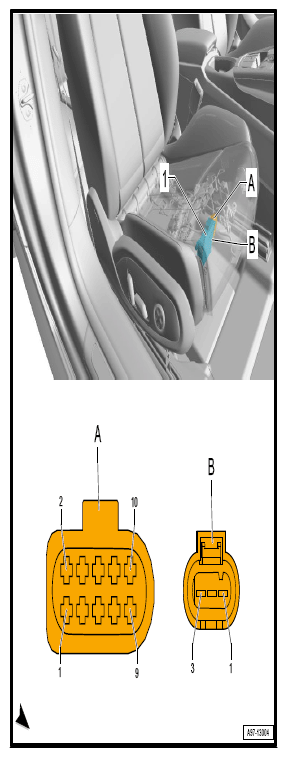

Seat Occupied Recognition Control Module -J706- Connector Views
10-PIN CONNECTOR -T10V- (A)/3-PIN CONNECTOR -T3AD- (B)
 Courtesy of AUDI OF AMERICA, LLC
|
| T10V (A) |
Designation |
| 1 |
|
| 2 |
Shielding ground |
| 3 |
Terminal 31, to 35 Ground Connection (below front passenger's seat) |
| 4 |
Terminal 31, to 136 Ground connection 2 (in heated seats wiring harness) |
| 5 |
|
| 6 |
Front Passenger's Seat Heating Element Z8 |
| 7 |
|
| 8 |
Front Passenger's Seat Heating Element Z8 |
| 9 |
|
| 10 |
Positive supply, from O14 Connection 3 (in heated seats wiring harness) |
| T3AD (B) |
Designation |
| 1 |
Terminal 15, from Fuse panel C SC |
| 2 |
Airbag Control Module J234 |
| 3 |
Terminal 31, to 95 Ground Connection 1 (in power seat wiring harness) |
