Instrument Cluster Control Module -J285- Connector Views

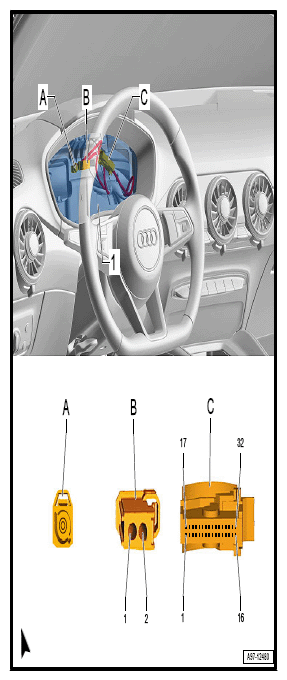

32-PIN CONNECTOR -T32A- (C)
| T32A (C) | Designation |
|---|---|
| 1 | Ring Break diagnosis B444 OBD connection 1 (in main wiring harness) |
| 2 | |
| 3 | Comfort System CAN-Bus Low, to B406 Comfort System CAN-Bus Low Connection 1 (in main wiring harness) B407 Comfort System CAN-Bus Low Connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 4 | Comfort System CAN-Bus High, to B397 Comfort System CAN-Bus High Connection 1 (in main wiring harness) B398 Comfort System CAN-Bus High Connection 2 (in main wiring harness) Data Bus On Board Diagnostic Interface J533 |
| 5 | Ground sensor, to 410 Sensor ground connection 1 (in main wiring harness) Fuel Level Sensor G Fuel Level Sensor 2 G169 |
| 6 | Fuel Level Sensor G |
| 7 | Fuel Level Sensor G |
| 8 | Instrument Cluster Operation Button E493 |
| 9 | Fuel Level Sensor 2 G169 |
| 10 | Fuel Level Sensor 2 G169 |
| 11 | |
| 12 | |
| 13 | |
| 14 | |
| 15 | Anti-Theft Immobilizer Reading Coil D2 |
| 16 | Anti-Theft Immobilizer Reading Coil D2 |
| 17 | |
| 18 | |
| 19 | |
| 20 | |
| 21 | |
| 22 | |
| 23 | |
| 24 | |
| 25 | |
| 26 | |
| 27 | |
| 28 | |
| 29 | |
| 30 | Terminal 31, to 376 Ground Connection 11 (in main wiring harness) 370 Ground Connection 5 (in main wiring harness) 687 Ground Connection 1 (on center tunnel) |
| 31 | |
| 32 | Terminal 30, from Fuse Panel C SC |
