Electronic Steering Column Lock Control Module -J764- Connector Views

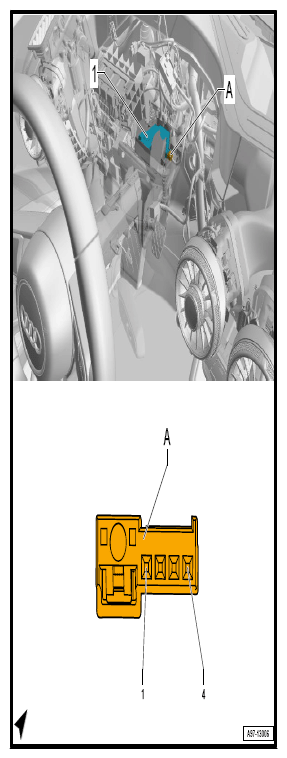

4-PIN CONNECTOR -T4L- (A)

G12778551Courtesy of AUDI OF AMERICA, LLC
T4L (A) Designation
1 Comfort System CAN-Bus High, to B397 Comfort System CAN-Bus High Connection 1 (in main wiring harness)
2 Comfort System CAN-Bus Low, to B406 Comfort System CAN-Bus Low Connection 1 (in main wiring harness)
3 Terminal 30, from Fuse panel C SC
4 Terminal 31, to 639 Ground Connection (on left A-pillar)
