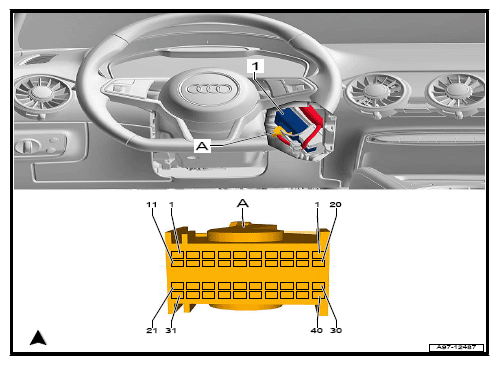

Access/Start Authorization Control Module -J518-, Location Only NAR

  1. Access/Start Authorization Control Module -J518-
  1. 40-Pin Connector -T40a-, black
G12778529Courtesy of AUDI OF AMERICA, LLC
